47Q78WE
RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description

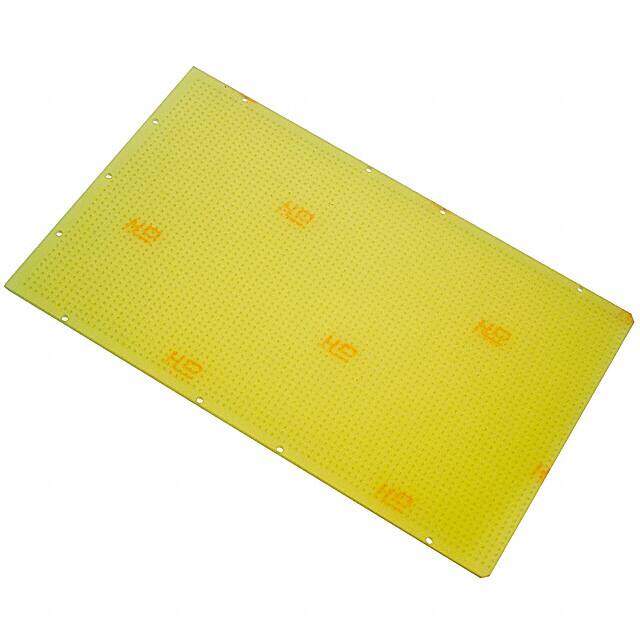

VECTOR ELECTRONICS 47Q78WEPCB, Punchboard, No Clad, Pattern-Q
PDF
/
Buying Options
Total Price: USD $12.58
Unit Price: USD $12.5752
≥1 USD $12.5752
≥10 USD $11.89848
≥100 USD $10.199024
Inventory: 19
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount External
Package / Case Epoxy
Material Glass
Technical
Published 2009
Series Vectorbord? Plugbord?
Size / Dimension 6.30Lx3.94W 160.0mmx100.1mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Pitch 0.079 2.00mm
Plating Non-Plated Through Hole (NPTH)
Hole Diameter 0.025 (0.64mm)
Proto Board Type Plugboard, Hard Metric
Dimensions
Height 160mm
Length 160.02mm
Width 100.076mm
Thickness 940μm
Board Thickness 0.062 1.57mm 1/16
Compliance
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
