4613-3
RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description

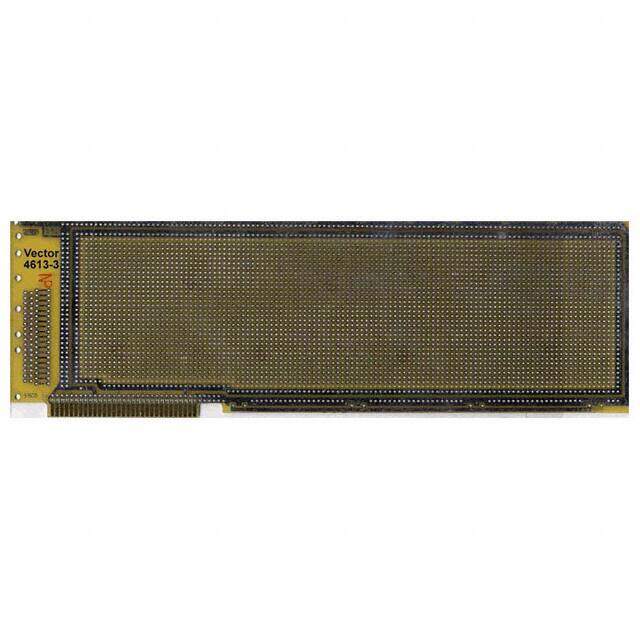

PC BOARD IBM PC,XT PPH 4.2X13.25
PDF
/
Inventory: 5152
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Dimensions
Board Thickness 0.062 1.57mm 1/16
Thickness 1.57mm
Height 1.57mm
Technical
Edge Contacts 62 @ 0.1 (2.54mm)
Circuit Pattern Pad Per Hole (Round)
Proto Board Type Plugboard, Card Edge
Operating Frequency-Min 1MHz
Frequency Deviation/Pullability 100 ppm
Operating Frequency-Max 125MHz
Hole Diameter 0.042 (1.07mm)
Frequency Adjustment-Mechanical NO
Evaluation Kit Yes
Output Load 15 PF
Oscillator Type HCMOS
Plating Plated Through Hole (PTH)
Symmetry-Max 40/60%
Physical Dimension 13.2mm x 13.2mm x 6mm
Operating Temperature (Max) 70°C
Reach Compliance Code compliant
Supply Voltage 3.3V
Pitch 0.100 2.54mm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 13.25Lx4.20W 336.6mmx106.7mm
Series Vectorbord? Plugbord?
Published 1998
Physical
Package / Case Epoxy
Mount External
Contact Material Glass
Supply Chain
Factory Lead Time 2 Weeks
