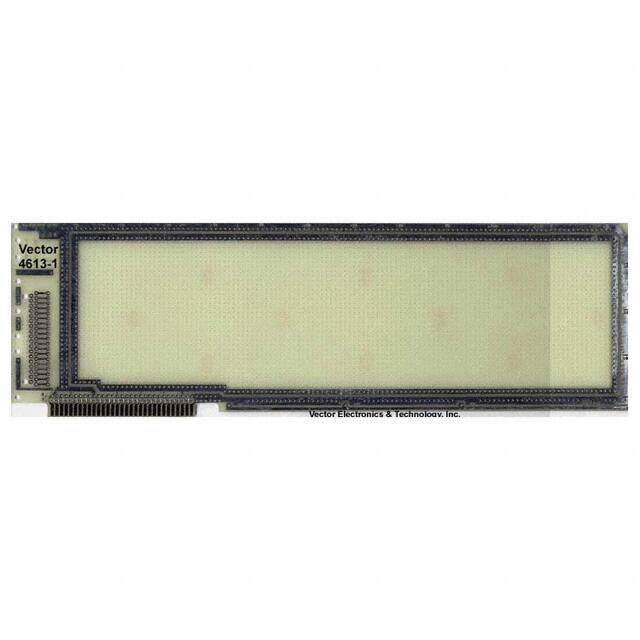

4613-1 image
Favorite
4613-1 image
Favorite
RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description PC BOARD IBM PC,XT PERIPH BUSES
PDF
/
Inventory: 9934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 2 Weeks

Physical

Contact Material Glass
Mount External
Package / Case Epoxy
Material Glass

Technical

Published 2009
Series Vectorbord? Plugbord?
Size / Dimension 13.25Lx4.20W 336.6mmx106.7mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Pitch 0.100 2.54mm
Plating Non-Plated Through Hole (NPTH)
Evaluation Kit Yes
Hole Diameter 0.042 (1.07mm)
Proto Board Type Plugboard, Card Edge
Circuit Pattern Pad Per Hole (Round), Ground Plane
Edge Contacts 62 @ 0.1 (2.54mm)

Dimensions

Height 1.57mm
Length 336.55mm
Width 106.68mm
Thickness 1.57mm
Board Thickness 0.062 1.57mm 1/16

Compliance

RoHS Status Non-RoHS Compliant
