3682-2
RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description

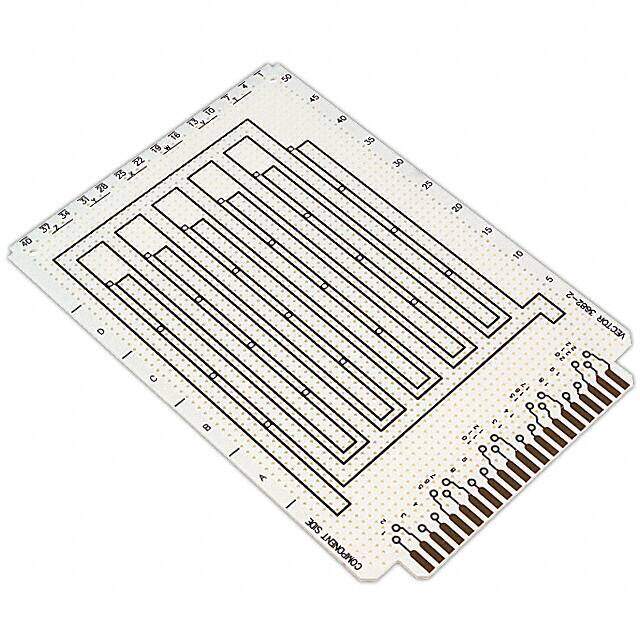

PC BOARD INTERLVD BUSES 4.5X6.5
PDF
/
Inventory: 4383
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Board Thickness 0.062 1.57mm 1/16
Thickness 1.57mm
Width 114.3mm
Length 165.1mm
Technical
Edge Contacts 44 @ 0.156 (3.96mm)
Circuit Pattern Common Bus
Proto Board Type Plugboard, Card Edge
Hole Diameter 0.042 (1.07mm)
Evaluation Kit Yes
Plating Non-Plated Through Hole (NPTH)
Pitch 0.100 2.54mm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 6.50Lx4.50W 165.1mmx114.3mm
Series Vectorbord? Plugbord?
Published 1998
Physical
Package / Case Epoxy
Mount External
Supply Chain
Factory Lead Time 2 Weeks
