RoHS
/
Package 062
Category Prototyping, Fabrication Products / Prototype Boards Perforated

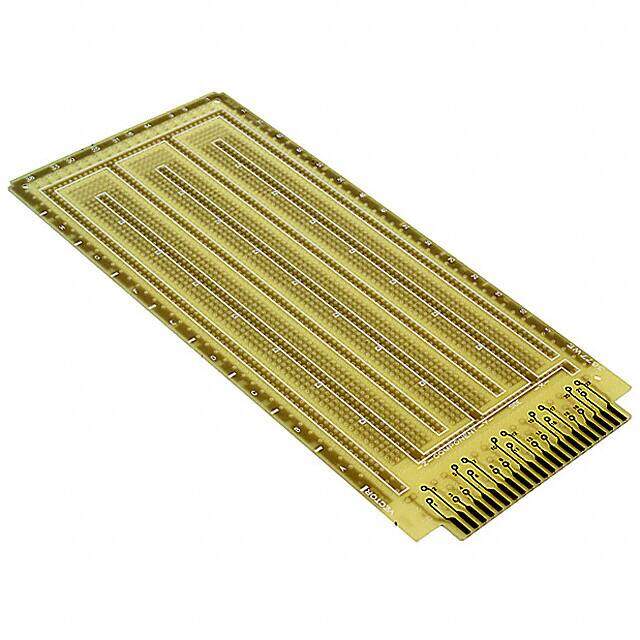

Description VECTOR ELECTRONICS 3677PCB PLUGBOARD, 22/44 @0.156"CARD EDGE, 3-HOLE PADS
PDF
/
Buying Options
Total Price: USD $8.76
Unit Price: USD $8.756
≥1 USD $8.756
Inventory: 204
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC

Dimensions

Board Thickness 0.062 1.57mm 1/16
Thickness 1.57mm
Height 1.57mm

Technical

Edge Contacts 44 @ 0.156 (3.96mm)
Circuit Pattern 3 Hole Pad (Single Side)
Proto Board Type Plugboard, Card Edge
Hole Diameter 0.042 (1.07mm)
Oscillator Type CMOS
Plating Non-Plated Through Hole (NPTH)
Number of Contacts 44
Reach Compliance Code compliant
Pitch 0.100 2.54mm
Terminal Finish GOLD OVER NICKEL
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 9.60Lx4.50W 243.8mmx114.3mm
Series Vectorbord? Plugbord?
Published 1998

Physical

Package / Case 062
Mount Edge

Supply Chain

Factory Lead Time 2 Weeks
