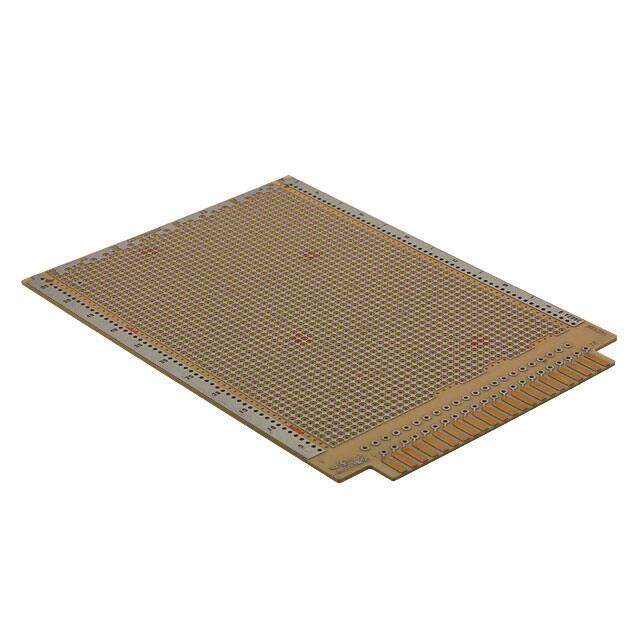

3662A6 image
Favorite
3662A6 image
Favorite
RoHS
/
Package 062
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description PC BOARD GROUND PLANE 4.5X6.5
PDF
/
Inventory: 1562
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 2 Weeks

Physical

Mount External
Package / Case 062

Technical

Published 1998
Series Vectorbord? Plugbord?
Size / Dimension 6.50Lx4.50W 165.1mmx114.3mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Pitch 0.100 2.54mm
Plating Non-Plated Through Hole (NPTH)
Hole Diameter 0.042 (1.07mm)
Proto Board Type Plugboard, Card Edge
Circuit Pattern Pad Per Hole (Round), Ground Plane
Edge Contacts 44 @ 0.156 (3.96mm)

Dimensions

Height 1.57mm
Length 165.1mm
Width 114.3mm
Thickness 1.57mm
Board Thickness 0.062 1.57mm 1/16

Compliance

RoHS Status Non-RoHS Compliant
