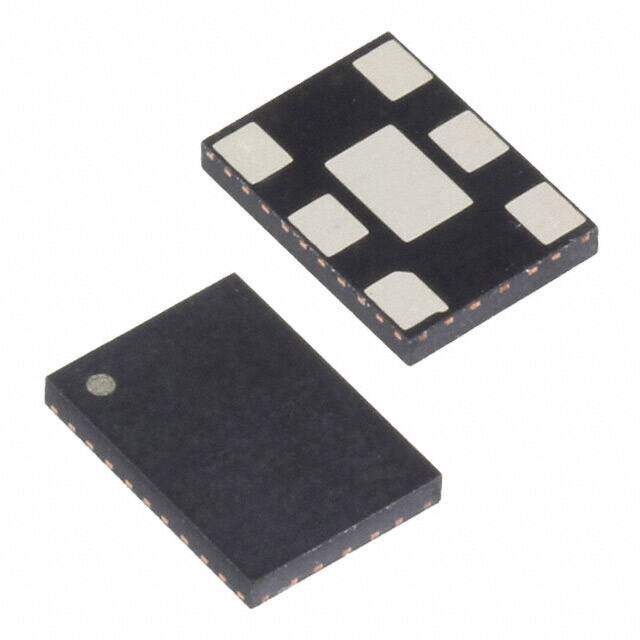

DSC8123AI2 image
Favorite
DSC8123AI2 image
Favorite

DSC8123AI2

Microchip Technology
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description Programmable Oscillators Unprog MEMSOscillator, -40C-85C, 25ppm
PDF
/
Buying Options
Total Price: USD $9.26
Unit Price: USD $9.2576
≥1 USD $9.2576
Inventory: 200
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Series DSC8123
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type XO (Standard)
Voltage - Supply 2.25V~3.6V
Frequency 460MHz
Frequency Stability 25 ppm
Output LVDS
Function Enable/Disable
Base Resonator MEMS
Physical Dimension 7.0mm x 5.0mm x 0.85mm
Rise Time-Max 0.2ns
Fall Time-Max 0.2ns
Symmetry-Max 52/48%
Programmable Type Blank (User Must Program)
Available Frequency Range 10MHz~460MHz
Load Capacitance 2pF
Max Supply Current 32mA
Max Duty Cycle 52 %

Dimensions

Height 889μm
Height Seated (Max) 0.035 0.90mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q100
