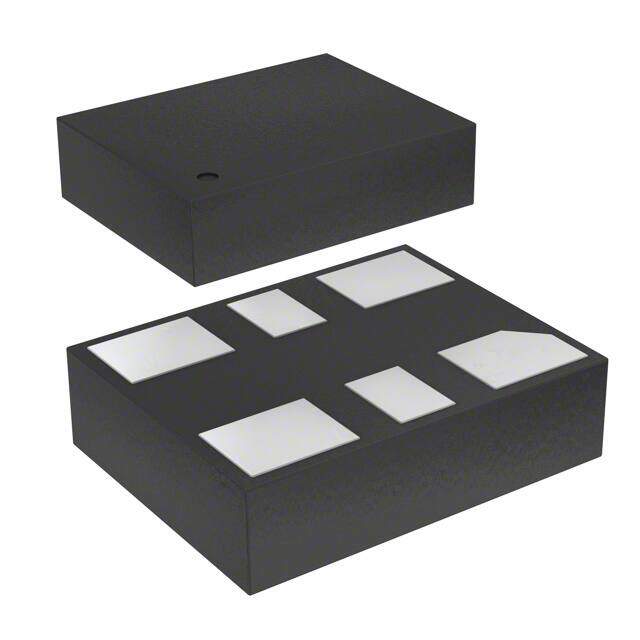

DSC8122BI5 image
Favorite
DSC8122BI5 image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description MEMS OSC PROG BLANK 10MHZ-460MHZ
PDF
/
Buying Options
Total Price: USD $10.18
Unit Price: USD $10.1816
≥1 USD $10.1816
Inventory: 242
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Published 2000
Series DSC8122
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Voltage - Supply 2.25V~3.6V
Frequency Stability ±10ppm
Output LVPECL
Function Enable/Disable
Base Resonator MEMS
Physical Dimension 5.0mm x 3.2mm x 0.85mm
Operating Frequency 10MHz
Rise Time-Max 0.25ns
Fall Time-Max 0.25ns
Symmetry-Max 52/48%
Current - Supply (Disable) (Max) 22mA
Programmable Type Blank (User Must Program)
Available Frequency Range 10MHz~460MHz
Max Supply Current 58mA
Frequency Adjustment-Mechanical NO

Dimensions

Height 889μm
Height Seated (Max) 0.035 0.90mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q100
