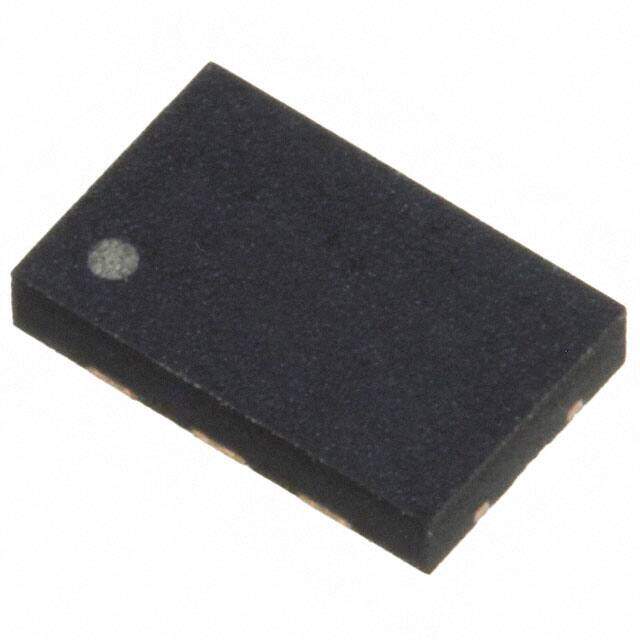

DSC8121BI2
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
Programmable Oscillators Unprog MEMS Oscillator, -40C-85C, 25ppm
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.73975
≥1 USD $10.73975
≥10 USD $8.8122
≥100 USD $8.5367
≥500 USD $8.2612
≥1000 USD $7.9857
Inventory: 702
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2009
Series DSC8121
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type XO (Standard)
Voltage - Supply 2.25V~3.6V
Frequency 170MHz
Frequency Stability 25 ppm
Output CMOS
Function Enable/Disable
Base Resonator MEMS
Physical Dimension 5.0mm x 3.2mm x 0.85mm
Operating Supply Voltage 3.3V
Rise Time-Max 2ns
Fall Time-Max 2ns
Symmetry-Max 55/45%
Programmable Type Blank (User Must Program)
Available Frequency Range 10MHz~170MHz
Load Capacitance 15pF
Max Supply Current 35mA
Max Duty Cycle 55 %
Dimensions
Height 889μm
Height Seated (Max) 0.035 0.90mm
Compliance
RoHS Status ROHS3 Compliant
