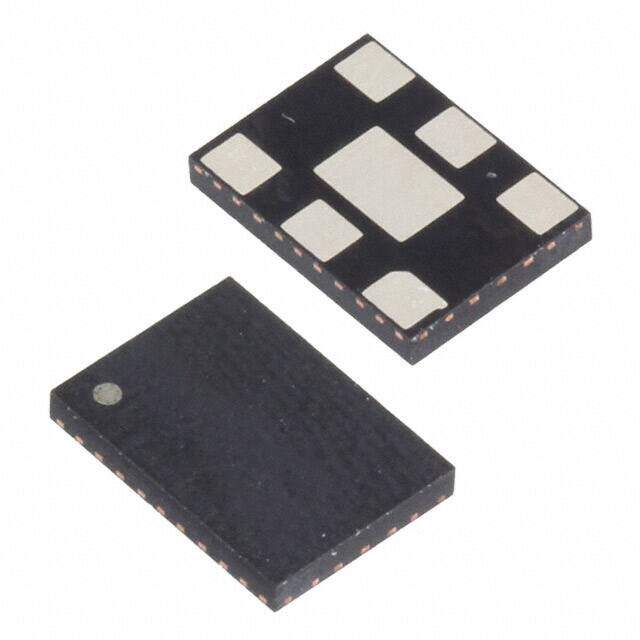

DSC8104AI5
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
Programmable Oscillators Unprog MEMS Oscillator, -40C-85C, 10ppm
PDF
/
Buying Options
Total Price: USD $6.2
Unit Price: USD $6.204
≥1 USD $6.204
Inventory: 59
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Number of Pins 4
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2014
Series DSC8104
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type XO (Standard)
Voltage - Supply 2.25V~3.6V
Frequency 460MHz
Frequency Stability 10 ppm
Output HCSL
Function Standby
Base Resonator MEMS
Physical Dimension 7.0mm x 5.0mm x 0.85mm
Programmable Type Blank (User Must Program)
Available Frequency Range 10MHz~460MHz
Load Capacitance 2pF
Max Supply Current 42mA
Max Duty Cycle 52 %
Dimensions
Height 889μm
Height Seated (Max) 0.035 0.90mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q100
