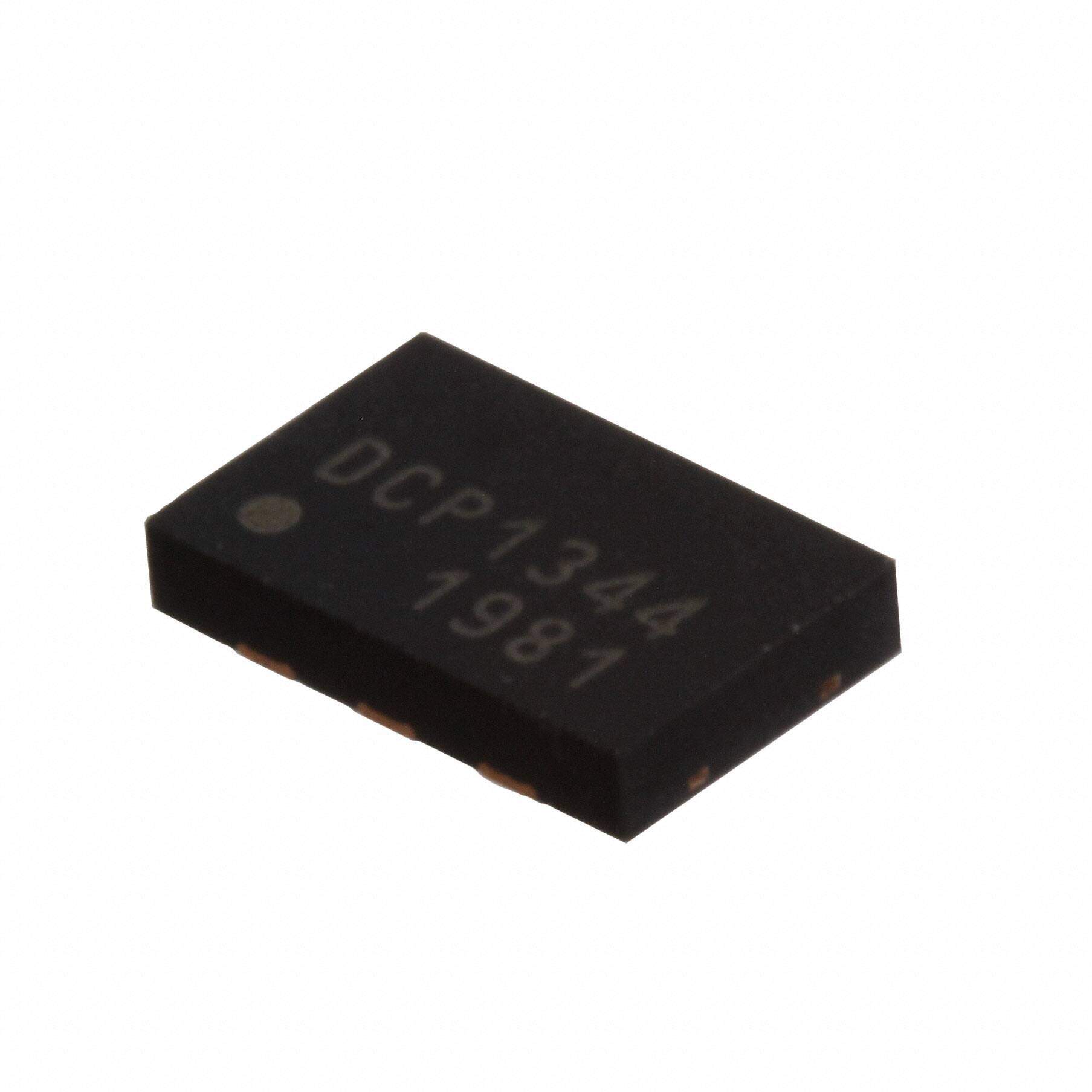

DSC8102BI5
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
Programmable Oscillators Unprog MEMS Oscillator,-40C-85C, 10ppm
PDF
/
Buying Options
Total Price: USD $16.55
Unit Price: USD $16.5528
≥1 USD $16.5528
Inventory: 90
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series DSC8102
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type XO (Standard)
Voltage - Supply 2.25V~3.6V
Frequency 460MHz
Frequency Stability 10 ppm
Output LVPECL
Function Standby
Base Resonator MEMS
Physical Dimension 5.0mm x 3.2mm x 0.85mm
Operating Frequency 10MHz
Operating Supply Voltage 3.3V
Rise Time-Max 0.25ns
Fall Time-Max 0.25ns
Symmetry-Max 52/48%
Programmable Type Blank (User Must Program)
Available Frequency Range 10MHz~460MHz
Max Supply Current 58mA
Max Duty Cycle 52 %
Dimensions
Height 889μm
Height Seated (Max) 0.035 0.90mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q100
