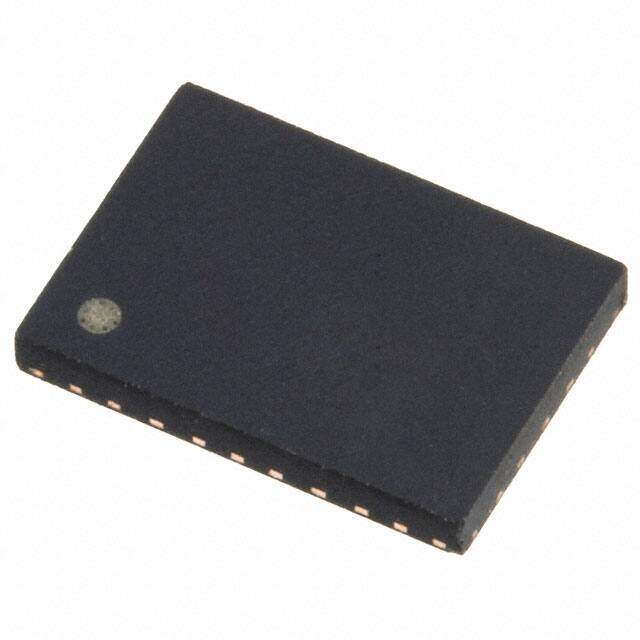

DSC8101AM2
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
Programmable Oscillators Unprog MEMS Oscillator, -55C-125C, 25ppm
PDF
/
Inventory: 5182
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Duty Cycle 55 %
Max Supply Current 35mA
Load Capacitance 15pF
Available Frequency Range 10MHz~170MHz
Programmable Type Blank (User Must Program)
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Supply Voltage 3.3V
Physical Dimension 7.0mm x 5.0mm x 0.85mm
Base Resonator MEMS
Function Standby
Output CMOS
Frequency Stability 25 ppm
Frequency 170MHz
Voltage - Supply 2.25V~3.6V
Type XO (Standard)
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series DSC8101
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Number of Pins 6
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
