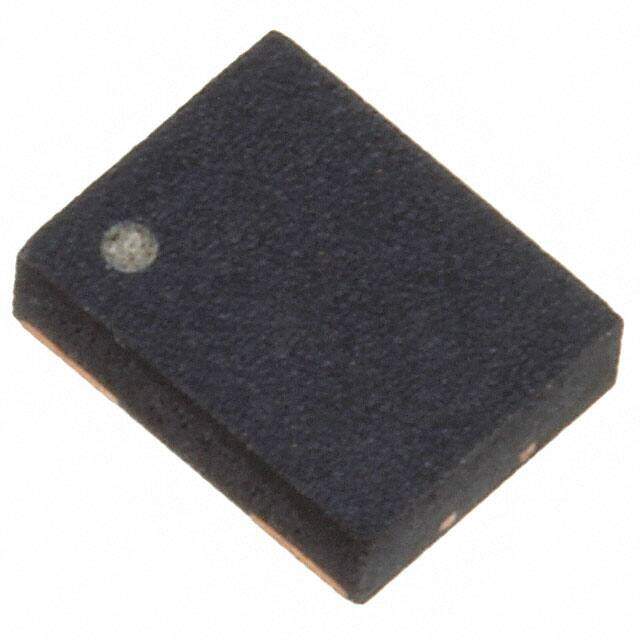

DSC8001CI1T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
Programmable Oscillators Unprog MEMS Oscillator, -40C-85C, 50ppm
PDF
/
Inventory: 7091
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q100
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Duty Cycle 55 %
Max Supply Current 12.2mA
Load Capacitance 15pF
Available Frequency Range 1MHz~150MHz
Programmable Type Blank (User Must Program)
Current - Supply (Disable) (Max) 15μA
Symmetry-Max 55/45%
Fall Time-Max 3ns
Rise Time-Max 3ns
Operating Supply Voltage 3.3V
Physical Dimension 3.2mm x 2.5mm x 0.85mm
Base Resonator MEMS
Function Standby
Output CMOS
Frequency Stability ±50ppm
Frequency 150MHz
Supply Voltage 1.8V
Voltage - Supply 1.8V~3.3V
Type XO (Standard)
Termination Solder
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series DSC8001
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
