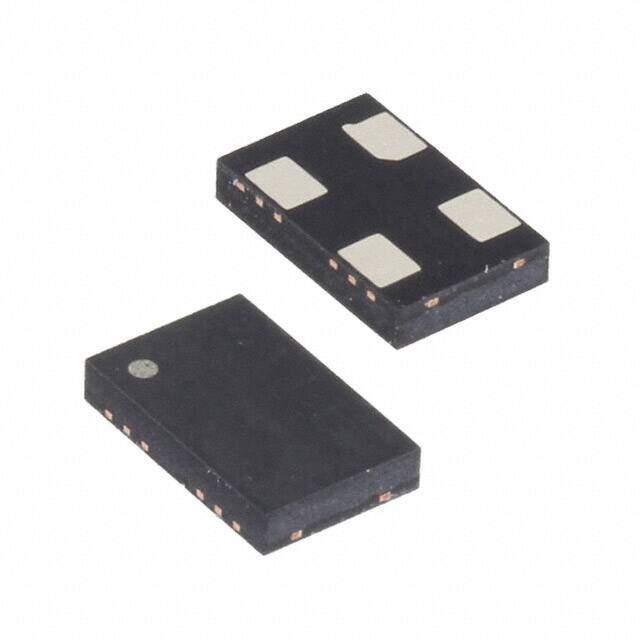

DSC8001BL5
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
ROHS3Compliant Standby Blank (User Must Program) Nickel/Palladium/Gold (Ni/Pd/Au) Programmable Oscillator 55/45% 15pF 3ns -40C~105C
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.932589
≥1 USD $1.932589
≥200 USD $0.748353
≥500 USD $0.722095
≥1000 USD $0.708966
Inventory: 9483
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series DSC8001
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type XO (Standard)
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Voltage - Supply 1.8V~3.3V
Supply Voltage 1.8V
Frequency 150MHz
Frequency Stability 10 ppm
Output CMOS
Function Standby
Base Resonator MEMS
Physical Dimension 5.0mm x 3.2mm x 0.85mm
Operating Supply Voltage 3.3V
Rise Time-Max 3ns
Fall Time-Max 3ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 15μA
Programmable Type Blank (User Must Program)
Available Frequency Range 1MHz~150MHz
Load Capacitance 15pF
Max Supply Current 12.2mA
Max Duty Cycle 55 %
Dimensions
Height 889μm
Height Seated (Max) 0.035 0.90mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q100
