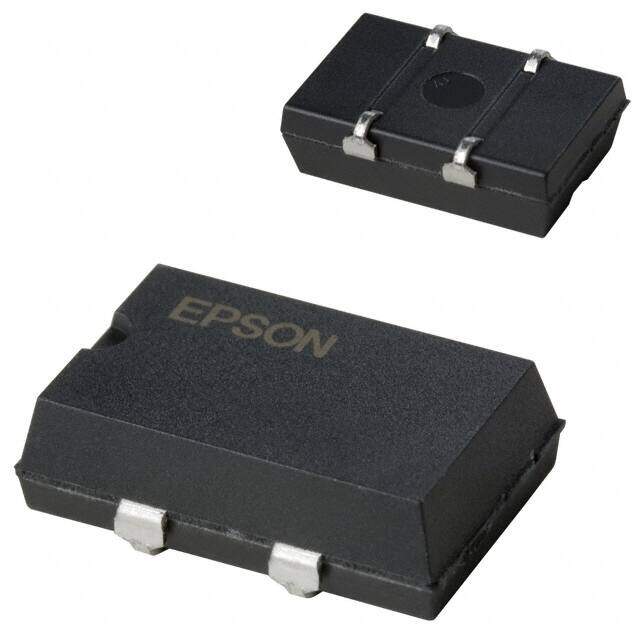

SGR-8002JA-PHB
RoHS
RoHS compliant
RoHS compliantPackage 4-SOJ, 5.08mm pitch
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
XTAL OSC PROG XO CMOS 5V 50PPM
PDF
/
Inventory: 1691
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.08mm pitch
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.185 4.70mm
Technical
Available Frequency Range 1MHz~125MHz
Programmable Type Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Current - Supply (Disable) (Max) 30mA
Current - Supply (Max) 45mA
Base Resonator Crystal
Function Enable/Disable
Output CMOS
Frequency Stability ±50ppm
Voltage - Supply 5V
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.551Lx0.341W 14.00mmx8.65mm
Series SG-8002
Packaging Tube
Operating Temperature -20°C~70°C
