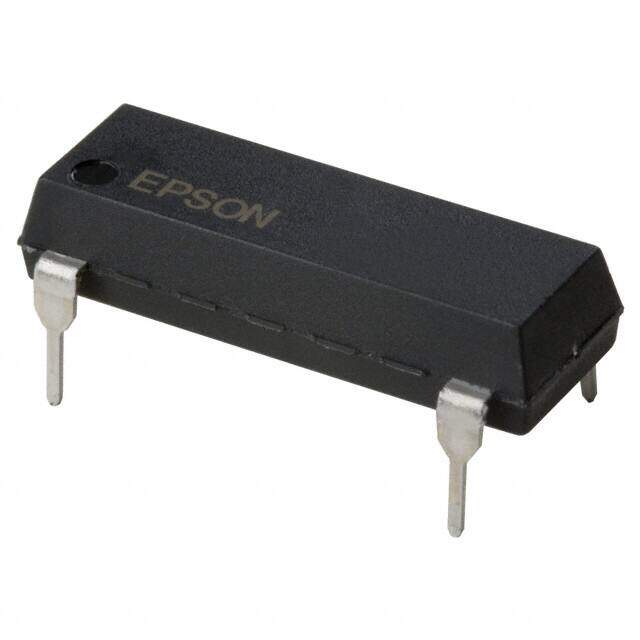

SGR-8002DB-PCB
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP, 4 Leads (Full Size)
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
XTAL OSC PROG XO CMOS 3.3V 50PPM
PDF
/
Inventory: 9262
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 14-DIP, 4 Leads (Full Size)
Technical
Operating Temperature -20°C~70°C
Packaging Tube
Series SG-8002
Size / Dimension 0.780Lx0.250W 19.81mmx6.36mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Output CMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 28mA
Current - Supply (Disable) (Max) 16mA
Programmable Type Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range 1MHz~125MHz
Dimensions
Height Seated (Max) 0.209 5.30mm
Compliance
RoHS Status ROHS3 Compliant
