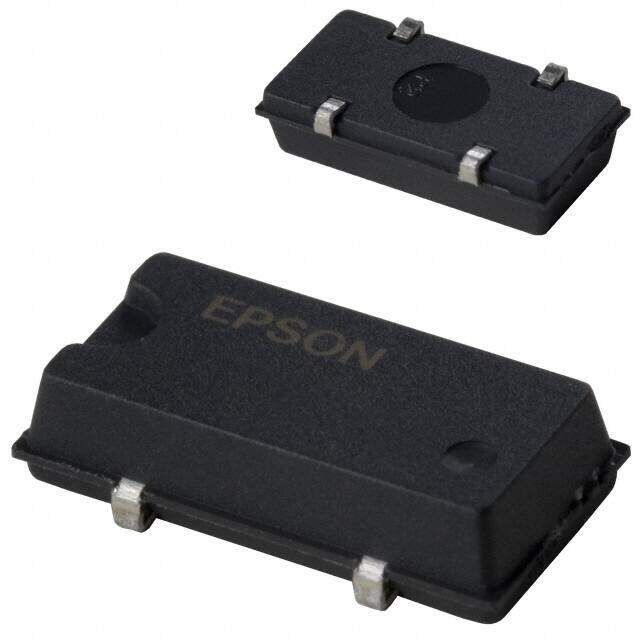

SG-8002JC-MPT
RoHS
/
Package 4-SOJ, 5.08mm pitch
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
XO (Standard) CMOS 1MHz ~ 125MHz Programmable Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
PDF
/
Inventory: 5742
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.08mm pitch
Technical
Operating Temperature -20°C~70°C
Packaging Tube
Series SG-8002
Size / Dimension 0.413Lx0.197W 10.50mmx5.00mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Voltage - Supply 5V
Frequency Stability ±50ppm
Output CMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 45mA
Current - Supply (Disable) (Max) 30mA
Programmable Type Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range 1MHz~125MHz
Max Supply Current 28mA
Dimensions
Height 2.6924mm
Height Seated (Max) 0.106 2.70mm
Length 10.4902mm
Width 5.08mm
Compliance
RoHS Status Non-RoHS Compliant
