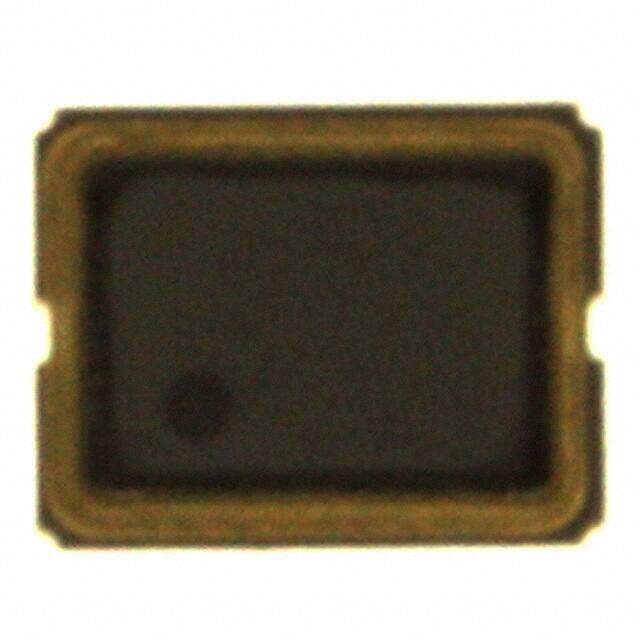

CSX325P1P-UT
RoHS
/
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
OSC BLANK 3.2X2.5MM SMD
PDF
/
Inventory: 6776
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series CSX-325P
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Voltage - Supply 3.3V 5V
Frequency Stability ±50ppm ±100ppm
Output CMOS, TTL
Function Enable/Disable, Standby
Base Resonator Crystal
Current - Supply (Max) 40mA
Programmable Type Blank (User Must Program)
Available Frequency Range 1MHz~125MHz
Max Supply Current 25mA
Dimensions
Height 990.6μm
Height Seated (Max) 0.039 1.00mm
Length 3.2004mm
Width 2.4892mm
Compliance
RoHS Status RoHS Compliant
