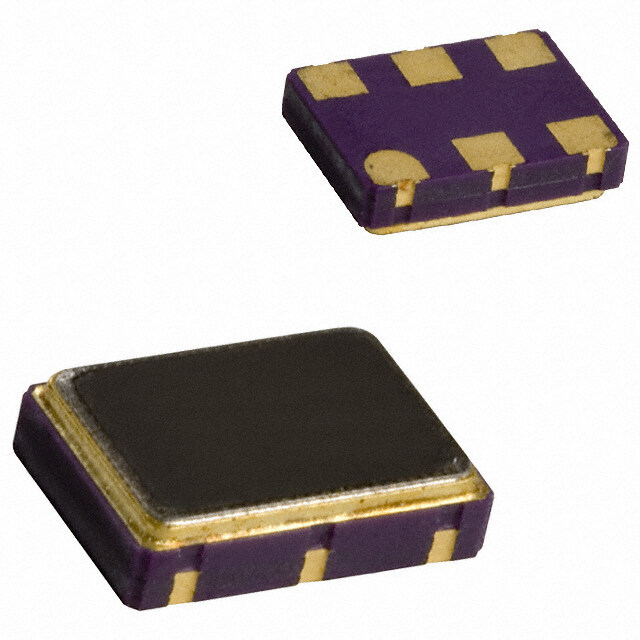

CPPHV7 image
Favorite
CPPHV7 image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description OSC PROG LVDS 3.3V TRI ST 25PPM
PDF
/
Inventory: 1110
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.079 2.00mm
Height 2.0066mm

Technical

Operating Frequency-Min 150MHz
Operating Frequency-Max 700MHz
Frequency Adjustment-Mechanical NO
Max Supply Current 130mA
Available Frequency Range 200MHz~700MHz
Programmable Type Blank (User Must Program)
Symmetry-Max 55/45%
Fall Time-Max 1ns
Rise Time-Max 1ns
Physical Dimension 7.0mm x 3.0mm x 1.8mm
Base Resonator Crystal
Function Enable/Disable
Output LVDS
Frequency Stability ±25ppm
Supply Voltage 3.3V
Voltage - Supply 3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Part Status Discontinued
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series FIPO? CPPHV
Published 2004
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
