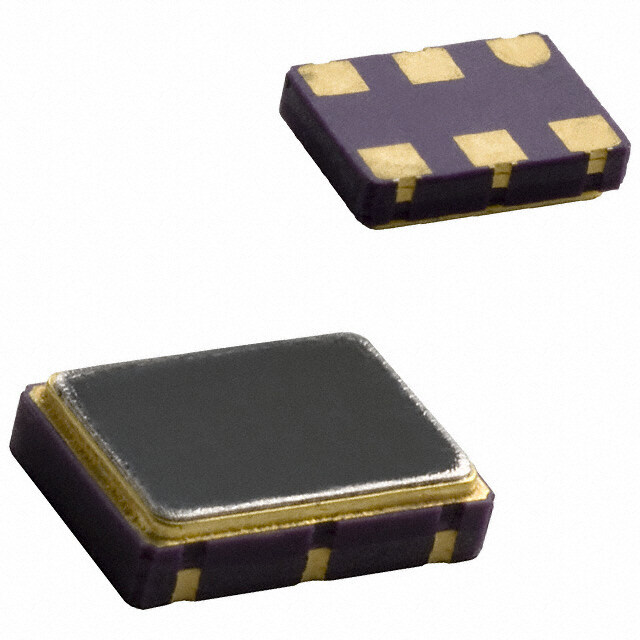

CPPHE7
RoHS
/
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description
OSC PROG LVPECL 3.3V TRI ST SMD
PDF
/
Inventory: 6018
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Height 2.0066mm
Technical
Frequency Adjustment-Mechanical NO
Max Supply Current 130mA
Available Frequency Range 200MHz~700MHz
Programmable Type Blank (User Must Program)
Symmetry-Max 55/45%
Fall Time-Max 1.5ns
Rise Time-Max 1.5ns
Operating Frequency 200MHz
Physical Dimension 7.0mm x 5.0mm x 1.8mm
Base Resonator Crystal
Function Enable/Disable
Output LVPECL
Frequency Stability ±25ppm
Supply Voltage 3.3V
Voltage - Supply 3.3V
Additional Feature TRI-STATE; DIFFERENTIAL OUTPUT; TAPE AND REEL
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series FIPO? CPPHE
Published 2004
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
