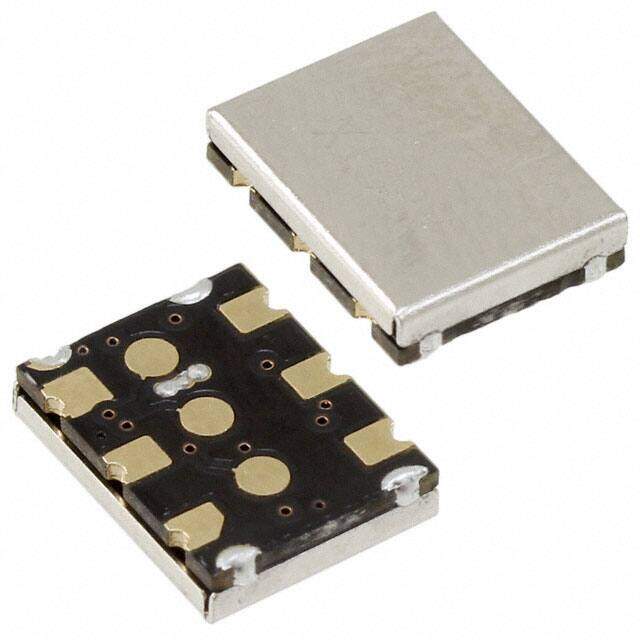

ASGTX-C-1 image
Favorite
ASGTX-C-1 image
Favorite

ASGTX-C-1

Abracon LLC
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Programmable Oscillators
Description XTAL OSC PROG VCTCXO LVCMOS 3.3V
PDF
/
Inventory: 3282
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Surface Mount YES

Technical

Operating Temperature -30°C~70°C
Packaging Bulk
Published 2008
Series ASGTX
Size / Dimension 0.354Lx0.276W 9.00mmx7.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type VCTCXO
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency Stability ±1ppm
Output LVCMOS
Base Resonator Crystal
Current - Supply (Max) 45mA
Physical Dimension 9.0mm x 7.0mm x 2.24mm
Operating Frequency 120MHz
Rise Time-Max 1ns
Fall Time-Max 1ns
Symmetry-Max 55/45%
Programmable Type Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range 10MHz~250MHz
Frequency Adjustment-Mechanical NO
Control Voltage-Max 3.3V
Frequency Deviation/Pullability 10 ppm

Dimensions

Height Seated (Max) 0.088 2.24mm

Compliance

RoHS Status RoHS Compliant
