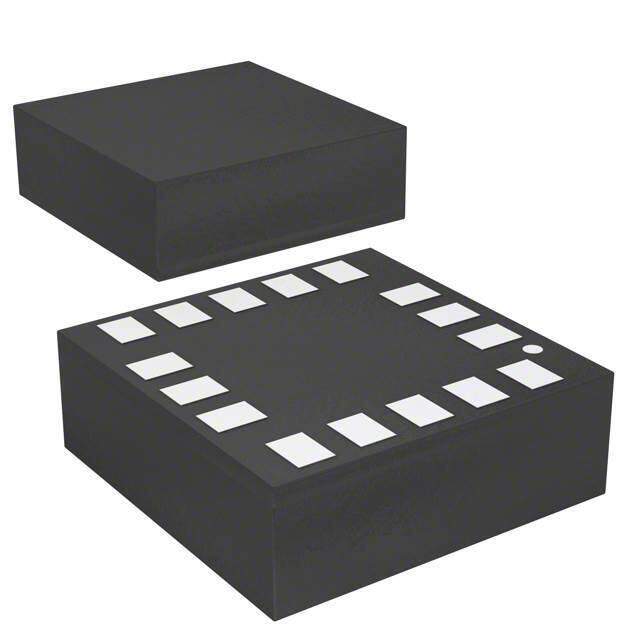

LPS331APY
RoHS
RoHS compliant
RoHS compliantPackage 16-VFLGA
Category Sensors, Transducers / Pressure Sensors, Transducers
Description
Board Mount Pressure Sensors MEMS 260 -1260 mbar 0.020 RMS 5.5uA 30uA
PDF
/
Buying Options
Total Price: USD $13.42
Unit Price: USD $13.42445
≥1 USD $13.42445
≥10 USD $11.01525
≥100 USD $10.6704
≥500 USD $10.3265
≥1000 USD $9.9826
Inventory: 1234
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Body Height 1mm
Technical
Pressure Range-Max 18.274 Psi
Max Pressure 290.08 PSI
Housing PLASTIC
Sensors/Transducers Type PRESSURE SENSOR,PEIZORESISTIVE
Maximum Pressure 290.08PSI (2000kPa)
Port Style No Port
Pressure Type Absolute
Operating Pressure 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa)
Accuracy ±0.003PSI (±0.02kPa)
Number of Bits 24
Nominal Supply Current 30μA
Termination Type SOLDER
Output Type I2C, SPI
Body Breadth 3 mm
Body Length or Diameter 3mm
Output 24 b
Base Part Number LPS331
Voltage - Supply 1.7V~3.6V
Applications Board Mount
Terminal Finish Nickel/Gold (Ni/Au)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Temperature Compensated
JESD-609 Code e4
Operating Temperature -40°C~85°C
Physical
Number of Pins 16
Package / Case 16-VFLGA
Mount Surface Mount
Supply Chain
Factory Lead Time 26 Weeks
