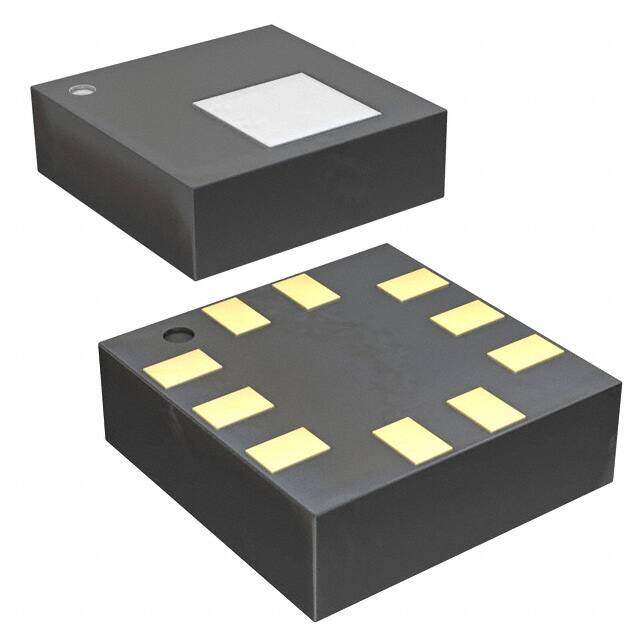

LPS22HBTR
RoHS
RoHS compliant
RoHS compliantPackage 10-WFLGA Exposed Pad
Category Sensors, Transducers / Pressure Sensors, Transducers
Description
MEMS NANO PRESSURE SENSOR: 260-1
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.63933
≥1 USD $1.63933
≥10 USD $1.54653
≥100 USD $1.45899
≥500 USD $1.37641
≥1000 USD $1.2985
≥3000 USD $1.225
Inventory: 99849
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 800μm
Technical
Pressure Range-Max 18.27 Psi
Max Pressure 290.08 PSI
Sensors/Transducers Type PRESSURE SENSOR,PEIZORESISTIVE
Maximum Pressure 290.08PSI (2000kPa)
Port Style No Port
Pressure Type Absolute
Operating Pressure 3.77PSI ~ 18.27PSI (26kPa ~ 126kPa)
Accuracy ±0.015PSI (±0.1kPa)
Number of Bits 24
Output Type I2C, SPI
Body Breadth 2 mm
Body Length or Diameter 2mm
Termination Style SMD (SMT) Tab
Output 24 b
Base Part Number LPS22
Voltage - Supply 1.7V~3.6V
Additional Feature IT ALSO HAVE 4-WIRE INTERFACE, IT HAS PRESSURE SENSITIVITY OF 4096 LSB/HPA
Applications Board Mount
Terminal Finish Nickel/Gold (Ni/Au) - electrolytic
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Temperature Compensated
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Manufacturer Package Identifier HLGA-10L-8479831
Number of Pins 10
Mounting Feature SURFACE MOUNT
Surface Mount YES
Package / Case 10-WFLGA Exposed Pad
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Factory Lead Time 16 Weeks
