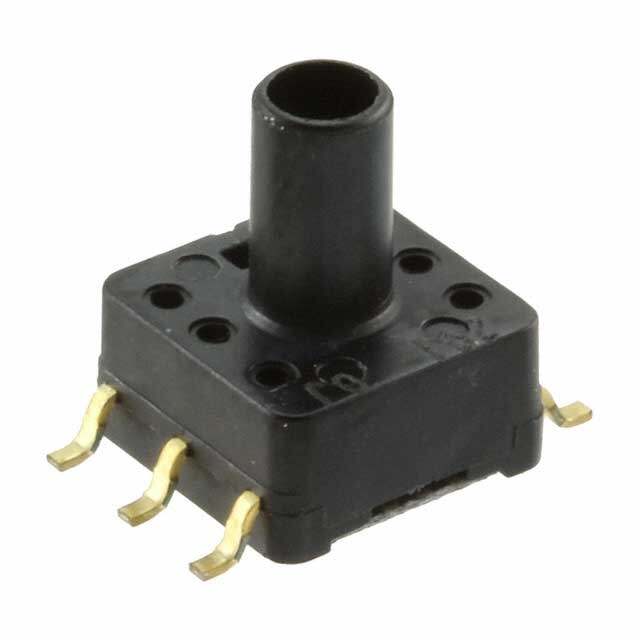

ADP5251
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Sensors, Transducers / Pressure Sensors, Transducers
Description
Board Mount Pressure / Force Sensors 200 kPa 5 mm Pressure Sensor SMD
PDF
/
Buying Options
Total Price: USD $31.1
Unit Price: USD $31.096037
≥1 USD $31.096037
≥200 USD $12.034041
≥500 USD $11.611288
≥1000 USD $11.402537
Inventory: 9582
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Body Height 8.5mm
Technical
Offset-Nom 0.50V
Pressure Sensing Mode GAGE
Pressure Range-Max 29 Psi
Max Pressure 58.02 PSI
Sensors/Transducers Type PRESSURE SENSOR,STRAIN GUAGE
Maximum Pressure 58.02PSI (400kPa)
Port Size Male - 0.12 3mm Tube
Port Style Barbless
Pressure Type Vented Gauge
Operating Pressure 29.01PSI (200kPa)
Accuracy ±1.5%
Output Type Wheatstone Bridge
Output Voltage 4.55V
Body Breadth 7.2 mm
Body Length or Diameter 7mm
Termination Style Gull Wing
Output 0 V ~ 4.5 V
Voltage - Supply 5V
Applications Board Mount
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Amplified Output, Temperature Compensated
Series PS-A
Published 2004
Operating Temperature -10°C~60°C
Physical
Number of Pins 6
Package / Case 6-SMD Module
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
