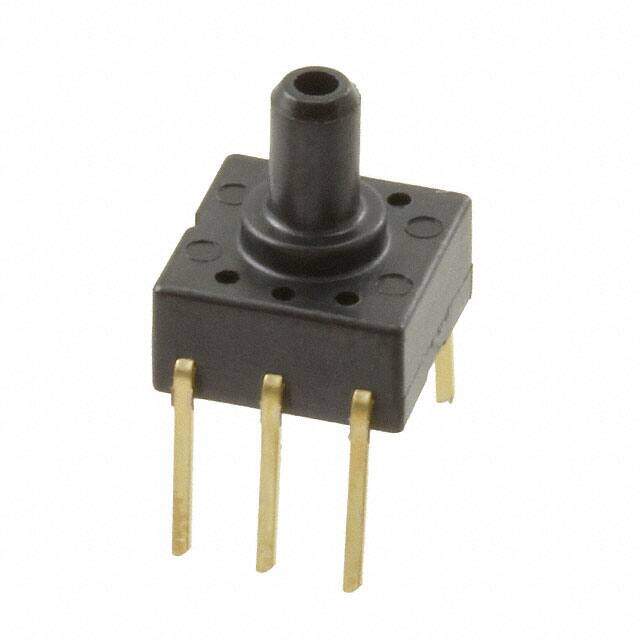

ADP41610
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Sensors, Transducers / Pressure Sensors, Transducers
Description
SENSOR PRESSURE 343.2KPA STD DIP
PDF
/
Buying Options
Total Price: USD $11.68
Unit Price: USD $11.683497
≥1 USD $11.683497
≥200 USD $4.521628
≥500 USD $4.362767
≥1000 USD $4.283993
Inventory: 5305
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Package / Case 6-DIP Module
Surface Mount NO
Number of Pins 6
Technical
Operating Temperature -20°C~100°C
Packaging Bulk
Published 2000
Series PS
Feature Temperature Compensated
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Applications Board Mount
Output 0 mV ~ 100 mV
Termination Style PC Pin
Body Length or Diameter 7.2mm
Body Breadth 7.2 mm
Output Voltage 100mV
Output Type Wheatstone Bridge
Accuracy ±0.3%
Operating Pressure 49.78PSI (343.2kPa)
Pressure Type Vented Gauge
Port Style Barbless
Port Size Male - 0.1 2.5mm Tube
Linearity 0.3 %
Maximum Pressure 99.55PSI (686.4kPa)
Sensors/Transducers Type PRESSURE SENSOR,STRAIN GUAGE
Max Pressure 99.55 PSI
Pressure Sensing Mode GAGE
Offset-Nom 0MV
Dimensions
Body Height 8.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
