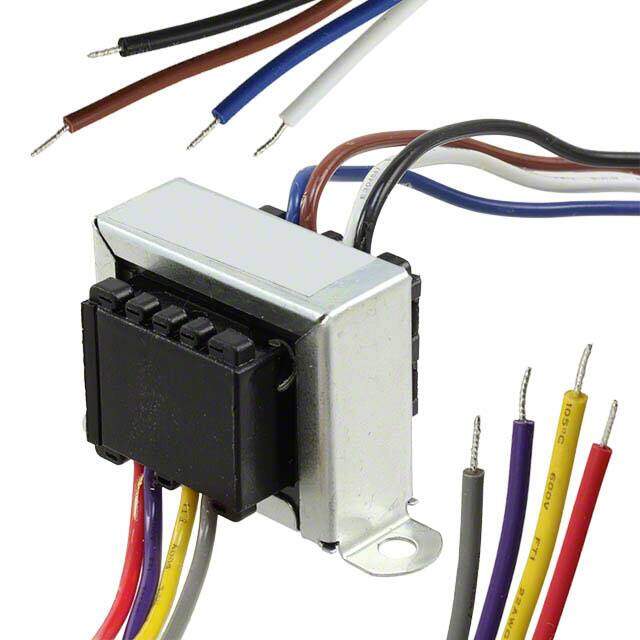

VPL14-360
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
Power Transformers Chassis, Lead, 5VA [email protected] Series
PDF
/
Buying Options
Total Price: USD $9.32
Unit Price: USD $9.3192
≥1 USD $9.3192
≥10 USD $6.88512
≥100 USD $6.355712
≥500 USD $6.143808
≥1000 USD $5.97432
≥3000 USD $5.950982
Inventory: 62
Minimum: 1
-
+
Technical Details
Technical
Size / Dimension 36.52mm Lx60.33mm W
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
Type Laminated Core
Power Rating 5W
Max Power Dissipation 5W
Current Rating 710mA
Termination Style Wire Leads
Approval Agency UL
Voltage - Isolation 3500Vrms
Output Voltage 7V
Max Output Current 360mA
Current - Output (Max) 0.36A
Element Configuration Dual
Output Current 710mA
Power - Max 5.0VA
Nominal Input Voltage 115V
Voltage - Primary 115V 230V
Primary Winding(s) Dual
Center Tap No
Voltage - Secondary (Full Load) 14V
Secondary Winding(s) Dual
Series Chassis Mount: World Series?
Published 2006
Dimensions
Height 36.49mm
Height Seated (Max) 36.52mm
Length 36.52mm
Width 60.33mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Weight 0.4lb 181.44g
Number of Pins 8
Mounting Type Chassis Mount
Mount Chassis Mount, Flanges, Panel
Supply Chain
Factory Lead Time 17 Weeks
