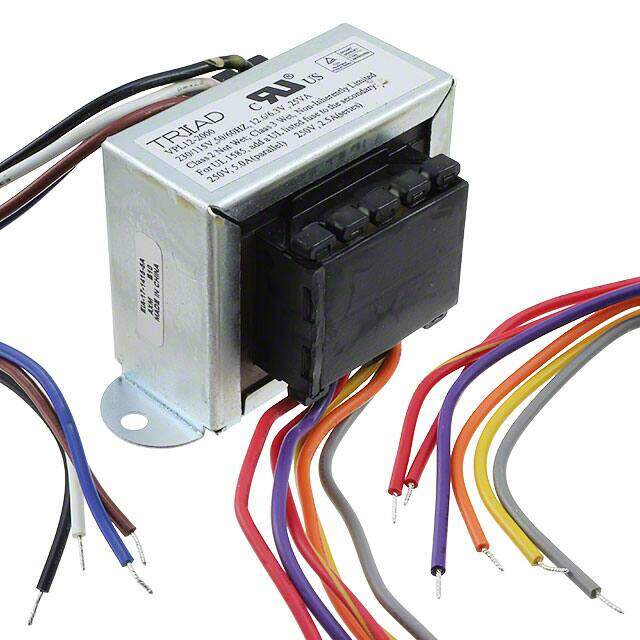

VPL12-2000 image
Favorite
VPL12-2000 image
Favorite

VPL12-2000

Triad Magnetics
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Power Transformers
Description Transformer;Dual Bobbin;Pri=115/230V;Sec=12.6V Series/6.3V Parallel;25 VA
PDF
/
Inventory: 2788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount Chassis Mount, Flanges, Panel
Mounting Type Chassis Mount
Number of Pins 8
Weight 1.3lbs 589.7g

Technical

Published 2014
Series Chassis Mount: World Series?
Size / Dimension 53.98mm Lx82.55mm W
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
Type Laminated Core
Power Rating 25W
Max Power Dissipation 25W
Current Rating 1.98A
Termination Style Wire Leads
Approval Agency UL
Voltage - Isolation 3500Vrms
Max Output Current 1.98A
Current - Output (Max) 1.98A
Element Configuration Dual
Power - Max 25.0VA
Voltage - Primary 115V 230V
Primary Winding(s) Dual
Center Tap No
Voltage - Secondary (Full Load) 12.6V
Secondary Winding(s) Dual
Secondary Current 1.98A

Dimensions

Height Seated (Max) 49.22mm
Length 53.98mm
Width 82.55mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
