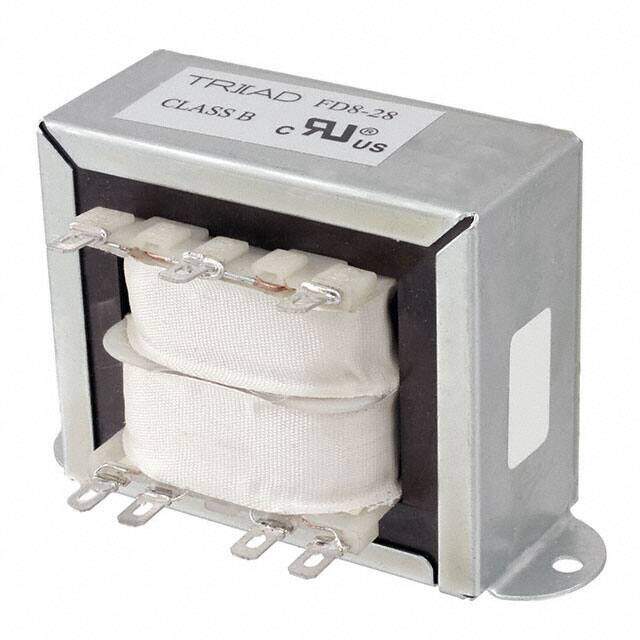

FD8-28 image
Favorite
FD8-28 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Power Transformers
Description Transformer;100VA;Chassis;Pri:115/230V;Sec:28VCT;Sec:3.6A;Solder Lug;50/60Hz
PDF
/
Buying Options
Total Price: USD $65.07
Unit Price: USD $65.066316
≥1 USD $65.066316
≥10 USD $25.961799
≥100 USD $25.095063
≥500 USD $24.665862
Inventory: 9691
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Length 102.39mm
Height Seated (Max) 65.07mm
Height 65.1mm

Technical

VA Rating 100 VA
Secondary Winding(s) Single
Voltage - Secondary (Full Load) 28V
Center Tap Yes
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Application POWER
Output Voltage 1 28V
Power - Max 100VA
Output Current 3.6A
Voltage - Isolation 2500VAC
Approval Agency UL
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Max Power Dissipation 100W
Power Rating 100W
Subcategory Other Transformers
HTS Code 8504.31.40.65
Type Laminated Core
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 102.39mm Lx57.15mm W
Series Quick Pack
Published 2006

Physical

Weight 2.8lbs 1.3kg
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Flanges, Panel

Supply Chain

Factory Lead Time 17 Weeks
