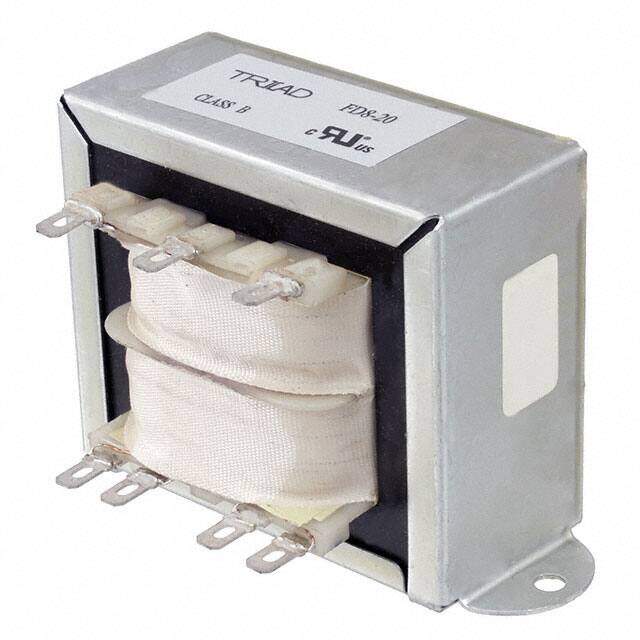

FD8-20
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
Power Transformers Chassis Mount, 100VA 20Vout, 115/230Vin
PDF
/
Buying Options
Total Price: USD $21.4
Unit Price: USD $21.396481
≥1 USD $21.396481
≥10 USD $20.185364
≥100 USD $19.042791
≥500 USD $17.964894
≥1000 USD $16.948021
Inventory: 1283
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Chassis Mount, Flanges, Panel
Mounting Type Chassis Mount
Number of Pins 7
Weight 2.8lbs 1.3kg
Technical
Published 2006
Series Quick Pack
Size / Dimension 102.39mm Lx57.15mm W
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect
Type Laminated Core
Power Rating 100W
Max Power Dissipation 100W
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Approval Agency UL
Voltage - Isolation 2500VAC
Current - Output (Max) 5A
Element Configuration Dual
Output Current 5A
Power - Max 100VA
Voltage - Primary 115V 230V
Primary Winding(s) Dual
Center Tap Yes
Voltage - Secondary (Full Load) 20V
Secondary Winding(s) Single
Dimensions
Height 65.0748mm
Height Seated (Max) 65.07mm
Length 102.39mm
Width 57.15mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
