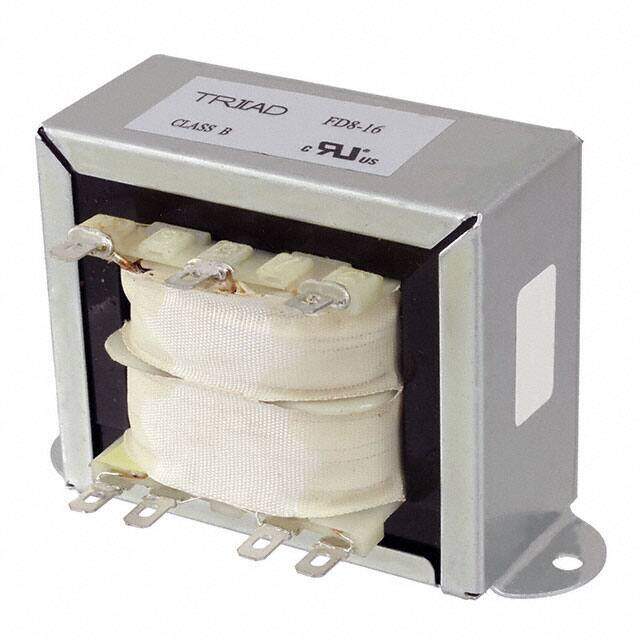

FD8-16 image
Favorite
FD8-16 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Power Transformers
Description Transformer;Chassis;Pri:115/230V;Sec:16VCT;Sec:6.25A;Solder Lug;50/60Hz;2-1/4In.
PDF
/
Buying Options
Total Price: USD $20.79
Unit Price: USD $20.7944
≥1 USD $20.7944
≥10 USD $18.35064
≥100 USD $17.738688
≥500 USD $17.182
Inventory: 45
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 57.15mm
Length 102.39mm
Height Seated (Max) 65.07mm
Height 65.1mm

Technical

Secondary Winding(s) Single
Voltage - Secondary (Full Load) 16V
Center Tap Yes
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Power - Max 100VA
Output Current 6.25A
Current - Output (Max) 6.25A
Voltage - Isolation 2500VAC
Approval Agency UL
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Current Rating 6.25A
Max Power Dissipation 100W
Power Rating 100W
Type Laminated Core
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 102.39mm Lx57.15mm W
Series Quick Pack
Published 2014

Physical

Weight 2.8lbs 1.3kg
Mounting Type Chassis Mount
Mount Chassis Mount, Panel

Supply Chain

Factory Lead Time 17 Weeks
