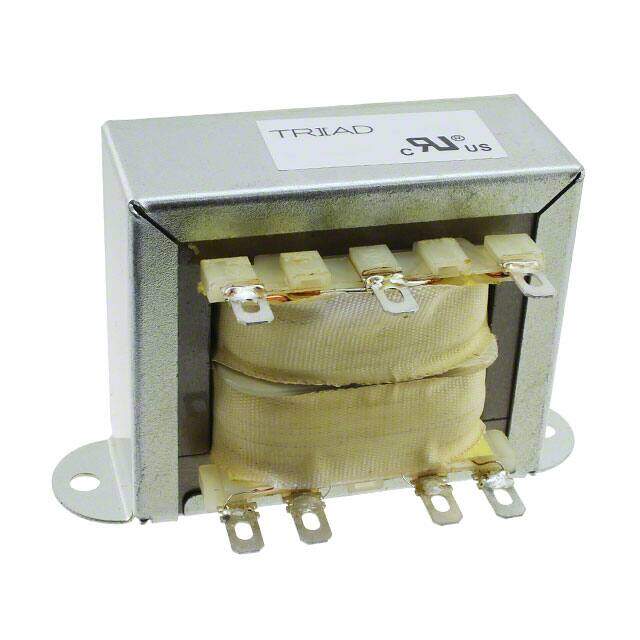

FD7-48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
GLOVE, POLYAMIDE, L/FREE, PU, SIZE 6 - More Details
PDF
/
Inventory: 7406
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 46.02mm
Length 93.65mm
Height Seated (Max) 57.15mm
Technical
Output Current 1 1.2A
VA Rating 56 VA
Secondary Winding(s) Single
Voltage - Secondary (Full Load) 48V
Center Tap Yes
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Application POWER
Output Voltage 1 48V
Power - Max 56VA
Current - Output (Max) 1.2A
Voltage - Isolation 2500VAC
Approval Agency UL
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Max Power Dissipation 56W
Power Rating 56W
Subcategory Other Transformers
HTS Code 8504.31.40.65
Type Laminated Core
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 93.65mm Lx46.02mm W
Series Quick Pack
Published 2014
Physical
Weight 1.7lbs 771.1g
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Flanges
Supply Chain
Factory Lead Time 17 Weeks
