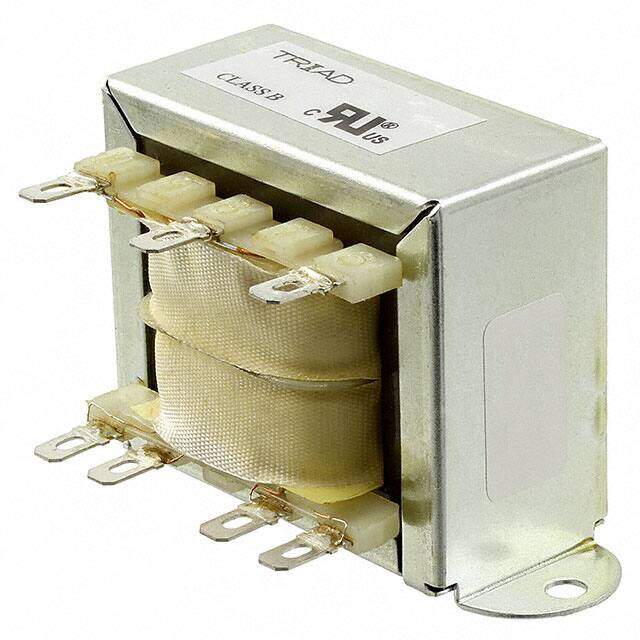

FD6-36
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
GLOVE, POLYAMIDE, L/FREE, PU, SIZE 6 - More Details
PDF
/
Inventory: 7500
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 42.85mm
Height Seated (Max) 49.20mm
Technical
Output Current 1 0.85A
VA Rating 30 VA
Secondary Winding(s) Single
Voltage - Secondary (Full Load) 36V
Center Tap Yes
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Application POWER
Input Voltage (Max) 230V
Input Voltage (Min) 115V
Output Voltage 1 36V
Power - Max 30VA
Current - Output (Max) 850mA
Input Voltage-Nom 230V
Voltage - Isolation 2500VAC
Approval Agency UL
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Current Rating 1A
Max Power Dissipation 30W
Power Rating 30W
Subcategory Other Transformers
HTS Code 8504.31.40.35
Type Laminated Core
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 82.55mm Lx42.85mm W
Series Quick Pack
Physical
Weight 1.1lbs 499g
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Flanges
Supply Chain
Factory Lead Time 17 Weeks
