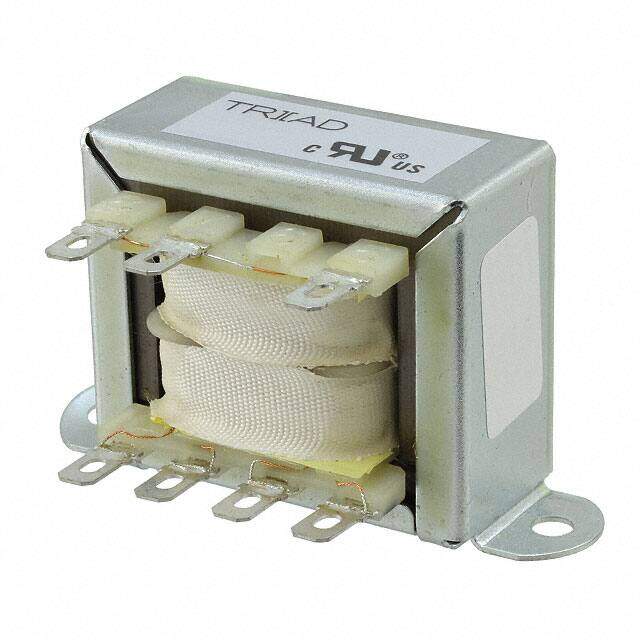

FD5-28 image
Favorite
FD5-28 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Power Transformers
Description Power Transformers Chassis Mount, 12VA 28Vout, 115/230Vin
PDF
/
Buying Options
Total Price: USD $10.41
Unit Price: USD $10.409238
≥1 USD $10.409238
≥10 USD $9.82003
≥100 USD $9.264182
≥500 USD $8.739798
≥1000 USD $8.245087
Inventory: 1186
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 41.28mm
Height 41.275mm

Technical

Secondary Winding(s) Single
Voltage - Secondary (Full Load) 28V
Center Tap Yes
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Power - Max 12VA
Output Current 420mA
Voltage - Isolation 2500VAC
Approval Agency UL
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Max Power Dissipation 12W
Power Rating 12W
Type Laminated Core
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 71.42mm Lx34.93mm W
Series Quick Pack
Published 2014

Physical

Weight 0.7lb 317.51g
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Flanges, Panel

Supply Chain

Factory Lead Time 17 Weeks
