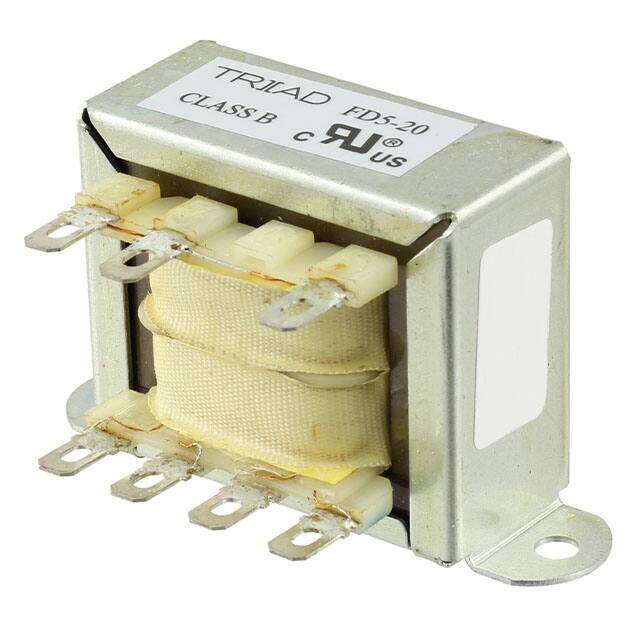

FD5-20
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
Transformer;12VA;Chassis;Pri:115/230V;Sec:20VCT;Sec:0.6A;Solder Lug;50/60Hz
PDF
/
Buying Options
Total Price: USD $10.72
Unit Price: USD $10.718067
≥1 USD $10.718067
≥10 USD $10.111379
≥100 USD $9.539032
≥500 USD $8.99909
≥1000 USD $8.489713
Inventory: 8760
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Chassis Mount, Flanges, Panel
Mounting Type Chassis Mount
Number of Pins 7
Weight 0.7lb 317.51g
Technical
Published 2014
Series Quick Pack
Size / Dimension 71.42mm Lx34.93mm W
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Laminated Core
Power Rating 12W
Max Power Dissipation 12W
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Approval Agency UL
Voltage - Isolation 2500VAC
Current - Output (Max) 600mA
Element Configuration Dual
Output Current 600mA
Power - Max 12VA
Voltage - Primary 115V 230V
Primary Winding(s) Dual
Center Tap Yes
Voltage - Secondary (Full Load) 20V
Secondary Winding(s) Single
Dimensions
Height 41.3mm
Height Seated (Max) 41.28mm
Length 71.42mm
Width 34.93mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
