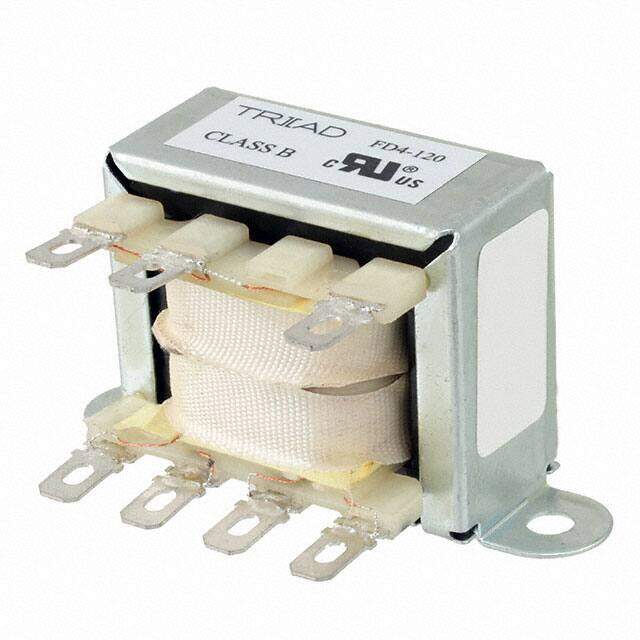

FD4-120 image
Favorite
FD4-120 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Power Transformers
Description Power Transformers Chassis Mount, 6VA 120Vout, 115/230Vin
PDF
/
Buying Options
Total Price: USD $8.44
Unit Price: USD $8.439201
≥1 USD $8.439201
≥10 USD $7.961511
≥100 USD $7.510856
≥500 USD $7.085721
≥1000 USD $6.684639
Inventory: 5965
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 60.325mm
Length 65.07mm
Height Seated (Max) 34.93mm
Height 34.925mm

Technical

Secondary Winding(s) Single
Voltage - Secondary (Full Load) 120V
Center Tap Yes
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Power - Max 6VA
Element Configuration Dual
Current - Output (Max) 50mA
Voltage - Isolation 2500VAC
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Max Power Dissipation 6W
Power Rating 6W
Type Laminated Core
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 65.07mm Lx31.75mm W
Series Quick Pack
Published 2014

Physical

Weight 0.44lb 199.58g
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Flanges

Supply Chain

Factory Lead Time 17 Weeks
