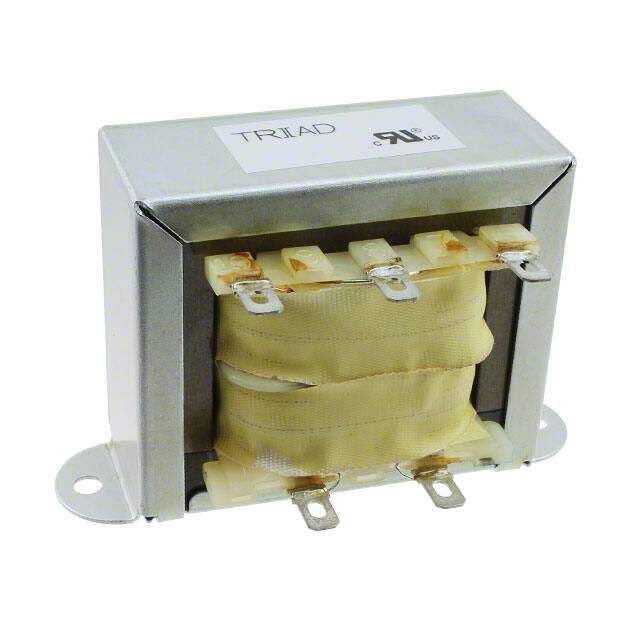

F7-10 image
Favorite
F7-10 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Power Transformers
Description Power Transformers Chassis Mount, 56VA 10VDCout, 115VACin
PDF
/
Buying Options
Total Price: USD $14.5
Unit Price: USD $14.497116
≥1 USD $14.497116
≥10 USD $13.676524
≥100 USD $12.902385
≥500 USD $12.172061
≥1000 USD $11.483073
Inventory: 1259
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount Chassis Mount, Flanges, Panel
Mounting Type Chassis Mount
Number of Pins 5
Weight 1.7lbs 771.1g

Technical

Series Quick Pack
Size / Dimension 93.65mm Lx46.02mm W
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Quick Connect
Type Laminated Core
Power Rating 56W
Max Power Dissipation 56W
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Approval Agency UL
Voltage - Isolation 2500VAC
Current - Output (Max) 5A
Element Configuration Single
Output Current 5A
Power - Max 56VA
Voltage - Primary 115V
Primary Winding(s) Single
Center Tap Yes
Voltage - Secondary (Full Load) 10V
Secondary Winding(s) Single

Dimensions

Height 57.15mm
Height Seated (Max) 57.15mm
Length 93.65mm
Width 46.02mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
