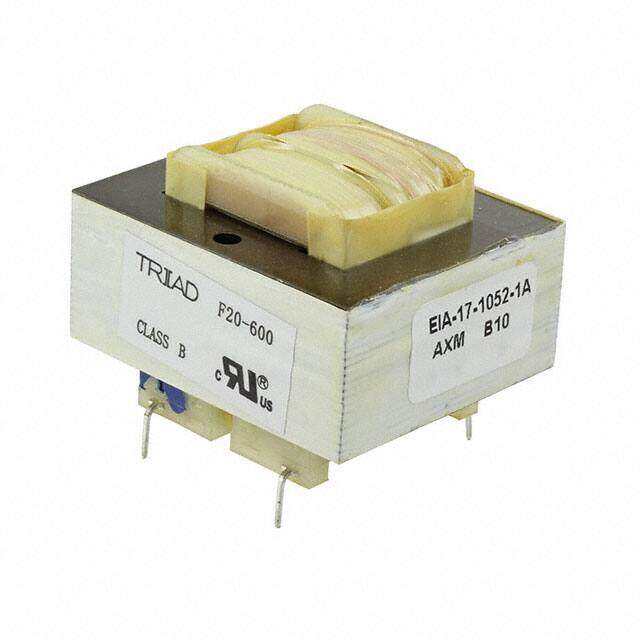

F20-600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
Power Transformers PC Mount, 12VA 20VDC [email protected] Series
PDF
/
Buying Options
Total Price: USD $9.27
Unit Price: USD $9.2664
≥1 USD $9.2664
Inventory: 66
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 39.67mm
Length 47.63mm
Height Seated (Max) 36.50mm
Height 36.4998mm
Technical
Secondary Winding(s) Dual
Voltage - Secondary (Full Load) Parallel 10V Series 20V
Center Tap No
Primary Winding(s) Single
Voltage - Primary 115V
Power - Max 12VA
Element Configuration Single
Current - Output (Max) Parallel 1.2A Series 600mA
Max Output Current 1.2A
Voltage - Isolation 2500Vrms
Approval Agency UL
Termination Style PC Pin
Current Rating 600mA
Max Power Dissipation 12W
Power Rating 12W
Type Laminated Core
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 47.63mm Lx39.67mm W
Series Split Pack?, Class 2/3, F
Published 2014
Physical
Weight 0.7lb 317.51g
Number of Pins 6
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 17 Weeks
