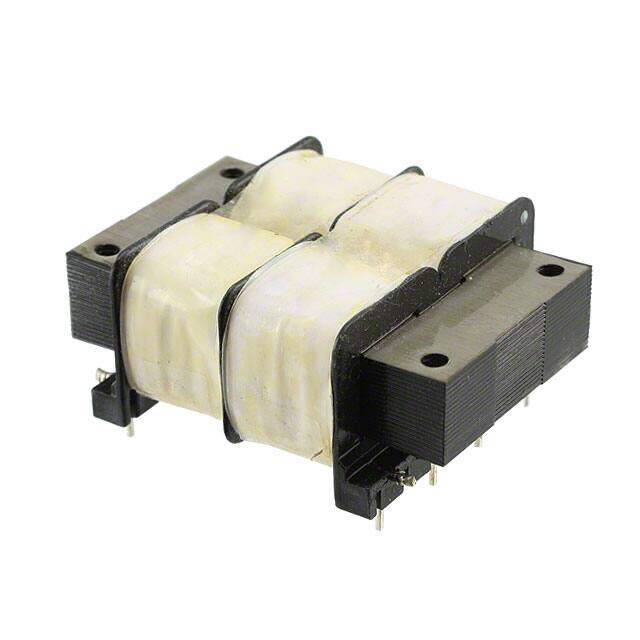

PF24-12 image
Favorite
PF24-12 image
Favorite

PF24-12

Tamura
RoHS
/
Package /
Category Transformers / Power Transformers
Description XFRMR SEMI-TORO 24VA THRU HOLE
PDF
/
Inventory: 1626
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 24 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Number of Pins 8
Weight 425g

Technical

Packaging Bulk
Published 2007
Series PF24
Size / Dimension 72.00mm Lx58.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Semi-Toroidal
Power Rating 24W
Max Power Dissipation 24W
Termination Style PC Pin
Voltage - Isolation 1500Vrms
Max Output Current 1.9A
Current - Output (Max) Parallel 3.8A Series 1.9A
Power - Max 24VA
Voltage - Primary 115V 230V
Primary Winding(s) Dual
Center Tap No
Voltage - Secondary (Full Load) Parallel 6.3V Series 12.6V
Secondary Current 1.9A

Dimensions

Height 31.8mm
Height Seated (Max) 31.80mm

Compliance

RoHS Status RoHS Compliant
Lead Free Contains Lead
