0200MD-1-003
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description

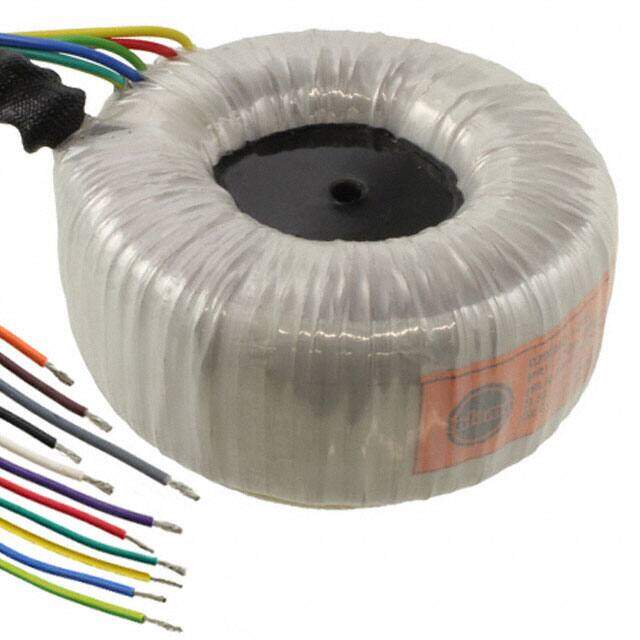

XFMR TOROIDAL MED GRADE 200VA
PDF
/
Buying Options
Total Price: USD $108.9
Unit Price: USD $108.9
≥1 USD $108.9
≥10 USD $105.26707
≥100 USD $98.007307
≥500 USD $90.74765
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Chassis Mount
Weight 5lbs 2.3kg
Technical
Published 2003
Series MD
Size / Dimension 117.00mm Diax56.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Termination Style Wire Leads
Voltage - Isolation 5000Vrms
Current - Output (Max) Parallel 1.67A Series 830mA
Power - Max 200VA
Voltage - Primary 100V 120V 200V 240V
Primary Winding(s) Dual, Multiple Taps
Center Tap No
Voltage - Secondary (Full Load) Parallel 120V Series 240V
Secondary Winding(s) Single, Multiple Taps
Compliance
RoHS Status ROHS3 Compliant
