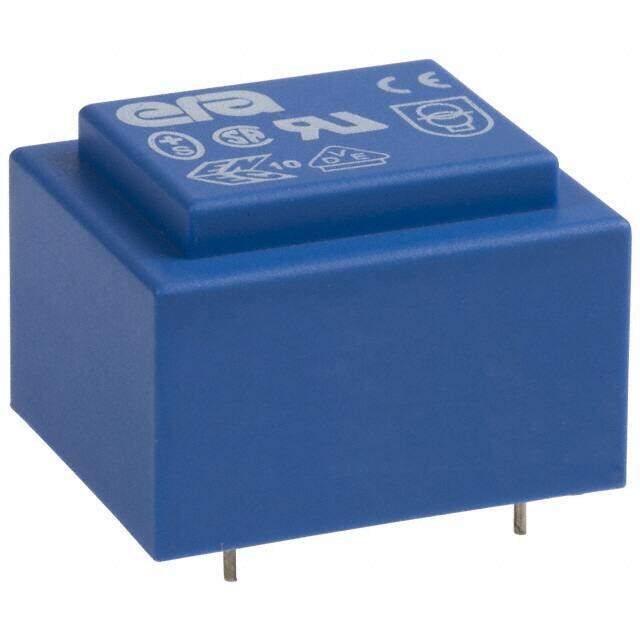

BV030-7221.0
RoHS
/
Package /
Category Transformers / Power Transformers
Description
XFRMR LAMINATED 1VA THRU HOLE
PDF
/
Inventory: 5245
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 0.133lb 60.33g
Technical
Size / Dimension 32.50mm Lx27.50mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Laminated Core
Max Power Dissipation 1W
Termination Style PC Pin
Max Output Current 111mA
Current - Output (Max) 111mA
Power - Max 1VA
Voltage - Primary 115V
Primary Winding(s) Single
Center Tap No
Voltage - Secondary (Full Load) 9V
Secondary Winding(s) Single
Dimensions
Height 870μm
Height Seated (Max) 22.00mm
Length 32.5mm
Width 27.5mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
