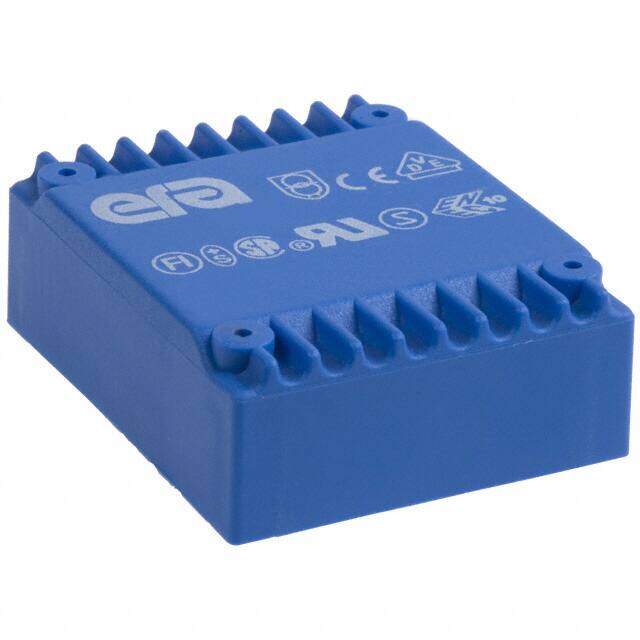

BV030-6941.0 image
Favorite
BV030-6941.0 image
Favorite
RoHS
/
Package /
Category Transformers / Power Transformers
Description XFRMR LAMINATED 4VA THRU HOLE
PDF
/
Inventory: 7053
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Weight 0.133lb 60.33g

Technical

Size / Dimension 53.00mm Lx44.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Laminated Core
Max Power Dissipation 4W
Termination Style PC Pin
Max Output Current 166mA
Current - Output (Max) Parallel 332mA Series 166mA
Power - Max 4VA
Voltage - Primary 115V 230V
Primary Winding(s) Dual
Center Tap No
Voltage - Secondary (Full Load) Parallel 12V Series 24V
Secondary Winding(s) Dual

Dimensions

Height 870μm
Height Seated (Max) 19.00mm
Length 53mm
Width 44mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
