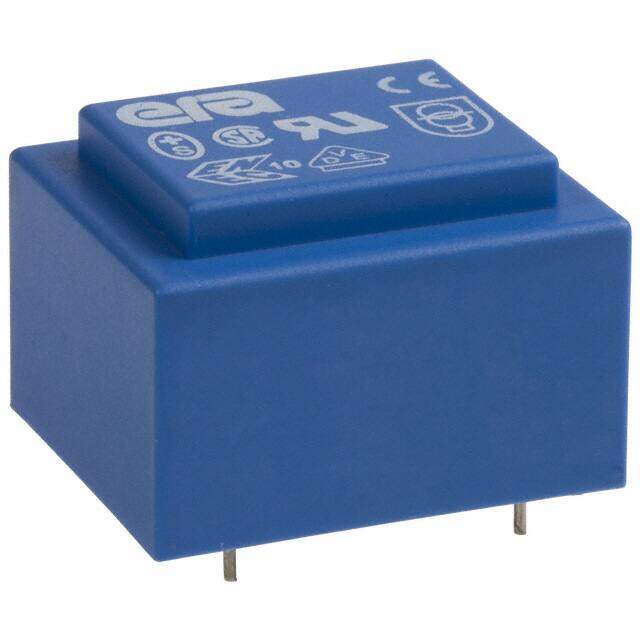

BV020-5432.0
RoHS
/
Package /
Category Transformers / Power Transformers
Description
XFRMR LAMINATED 0.35VA THRU HOLE
PDF
/
Inventory: 7965
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 0.077lb 34.93g
Technical
Size / Dimension 22.00mm Lx23.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Laminated Core
Max Power Dissipation 350mW
Termination Style PC Pin
Max Output Current 12mA
Current - Output (Max) Parallel 24mA Series 12mA
Power - Max 0.35VA
Voltage - Primary 230V
Primary Winding(s) Single
Center Tap No
Voltage - Secondary (Full Load) Parallel 15V Series 30V
Secondary Winding(s) Dual
Dimensions
Height 600μm
Height Seated (Max) 15.00mm
Length 22mm
Width 23mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
