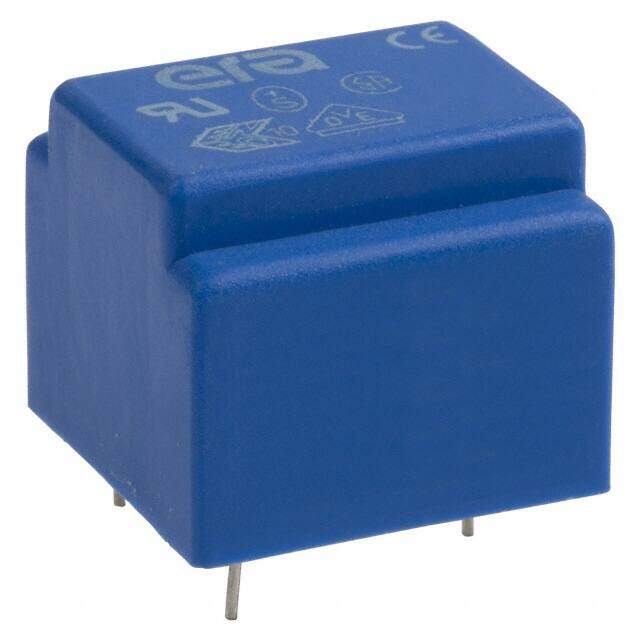

BV020-5378.0
RoHS
/
Package /
Category Transformers / Power Transformers
Description
XFRMR LAMINATED 0.5VA CHAS MOUNT
PDF
/
Inventory: 7517
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Secondary Winding(s) Dual
Voltage - Secondary (Full Load) Parallel 12V Series 24V
Center Tap No
Primary Winding(s) Single
Voltage - Primary 115V
Power - Max 0.5VA
Current - Output (Max) Parallel 42mA Series 21mA
Max Output Current 21mA
Termination Style PC Pin
Max Power Dissipation 500mW
Type Laminated Core
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 22.00mm Lx23.00mm W
Physical
Weight 0.077lb 34.93g
Mounting Type Chassis Mount
Mount Chassis Mount
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 23mm
Length 22mm
Height Seated (Max) 19.00mm
Height 472μm
