RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description

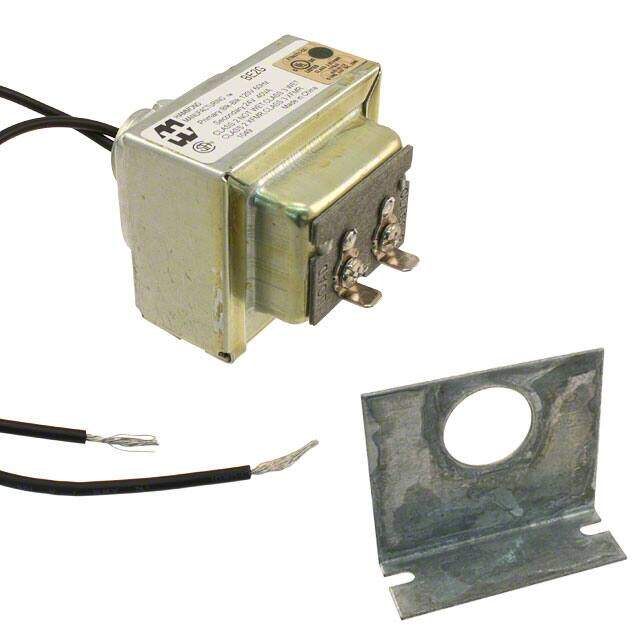

XFRMR LAMINATED 40VA CHAS MOUNT
PDF
/
Buying Options
Total Price: USD $20.21
Unit Price: USD $20.2136
≥1 USD $20.2136
≥10 USD $17.83848
≥100 USD $14.865136
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 50.29mm
Height 50.3mm
Technical
VA Rating 40 VA
Number of Secondary Winding 1
Voltage - Secondary (Full Load) 24V
Center Tap No
Primary Winding(s) Single
Voltage - Primary 120V
Power - Max 40VA
Max Output Current 1.67A
Approval Agency CSA
Termination Style Wire Leads, Quick Connect
Frequency 60Hz
Current Rating 1.67A
Max Power Dissipation 40W
Power Rating 40W
HTS Code 8504.31.40.65
Min Operating Temperature 0°C
Max Operating Temperature 105°C
Type Laminated Core
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 59.18mm Lx66.04mm W
Series BE
Published 2008
Packaging Bulk
Physical
Weight 1.5lbs 680.4g
Mounting Type Chassis Mount
Mount Box, Chassis Mount, Panel
Supply Chain
Factory Lead Time 12 Weeks
