RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description

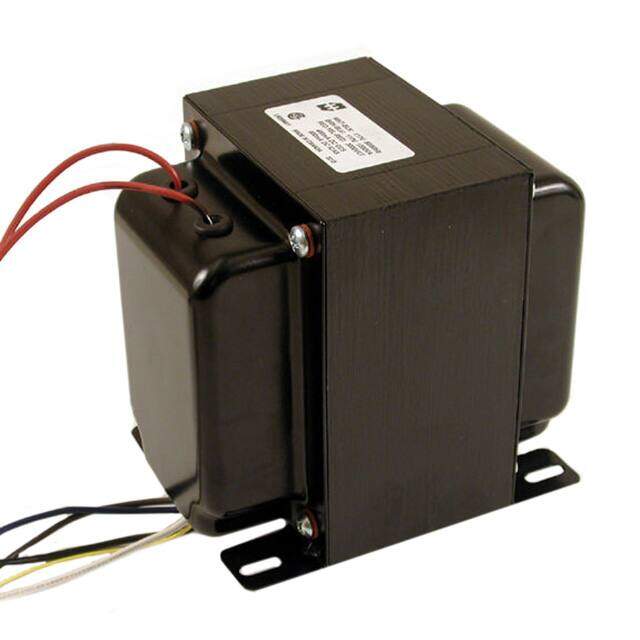

XFRMR LAMINATED 370VA CHAS MOUNT
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.225984
≥100 USD $0.2024
≥500 USD $0.189552
≥1000 USD $0.168168
≥3000 USD $0.131894
Inventory: 60592
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 12lbs 5.4kg
Technical
Series 700
Size / Dimension 95.25mm Lx136.65mm W
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
ECCN Code EAR99
Type Laminated Core
Max Operating Temperature 105°C
Min Operating Temperature 0°C
Power Rating 370W
Max Power Dissipation 370W
Termination Style Wire Leads
Approval Agency CSA
Max Output Current 300mA
Power - Max 370VA
Output Voltage 1 1250V
Input Voltage (Max) 115V
Operating Frequency-Max 60kHz
Voltage - Primary 115V
Primary Winding(s) Single
Center Tap Yes
Voltage - Secondary (Full Load) 1250V
Dimensions
Height 114.3mm
Height Seated (Max) 114.30mm
Compliance
RoHS Status ROHS3 Compliant
