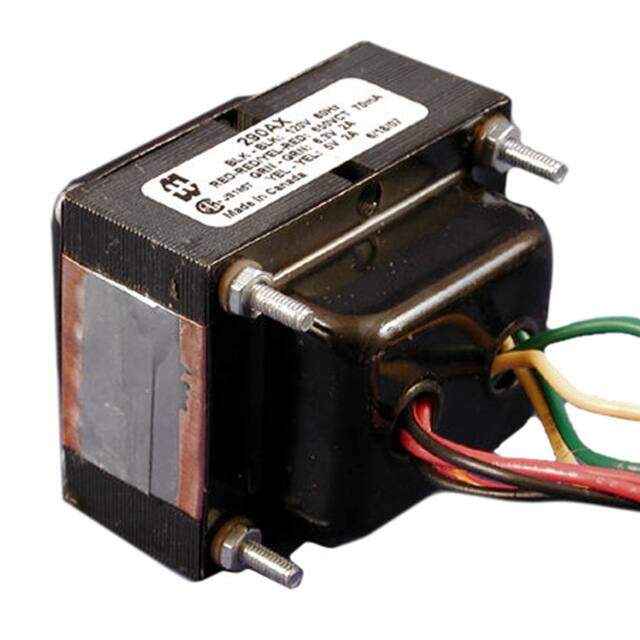

290AX
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
Power Transformers Fender/Champ/Vibro Princeton 120V 60Hz
PDF
/
Buying Options
Total Price: USD $90.51
Unit Price: USD $90.508
≥1 USD $90.508
≥10 USD $87.494
≥100 USD $81.45984
≥500 USD $75.425856
Inventory: 38
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 4lbs 1.8kg
Technical
Published 2008
Series 290
Size / Dimension 63.50mm Lx71.55mm W
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
Type Laminated Core
Current Rating 81mA
Termination Style Wire Leads
Max Output Current 2A
Current - Output (Max) 81mA 2A 2A
Voltage - Primary 120V
Primary Winding(s) Single
Center Tap Yes
Voltage - Secondary (Full Load) 650V 6.3V 5V
Secondary Winding(s) Triple
Dimensions
Height 63.5mm
Height Seated (Max) 77.80mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
