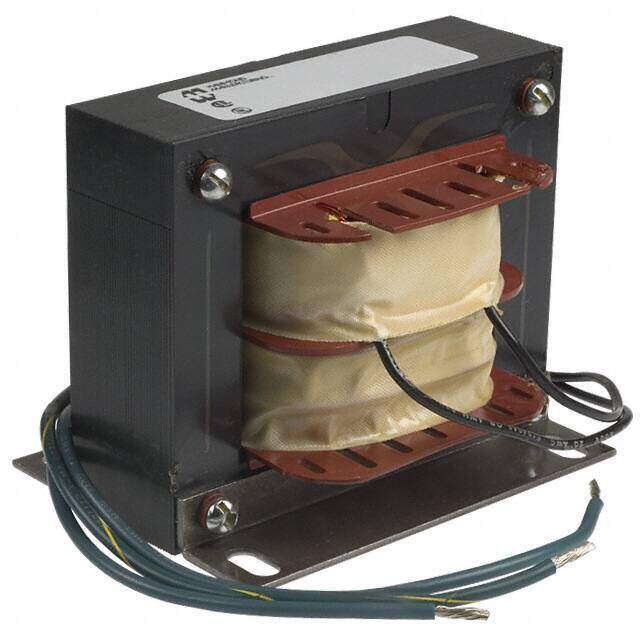

165Z3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
XFRMR LAMINATED 150VA CHAS MOUNT
PDF
/
Buying Options
Total Price: USD $71.6
Unit Price: USD $71.5968
≥1 USD $71.5968
≥10 USD $69.20672
≥100 USD $59.660656
Inventory: 78
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 79.50mm
Height 79.5mm
Technical
Number of Secondary Winding 1
Voltage - Secondary (Full Load) 3V
Center Tap Yes
Primary Winding(s) Single
Voltage - Primary 115V
Power - Max 150VA
Max Output Current 50A
Voltage - Isolation 2000Vrms
Approval Agency UL; CSA
Termination Style Wire Leads
Max Power Dissipation 150W
Min Operating Temperature 0°C
Max Operating Temperature 130°C
Type Laminated Core
ECCN Code EAR99
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 95.25mm Lx88.90mm W
Series 165
Published 2000
Physical
Weight 6lbs 2.7kg
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 4 Weeks
