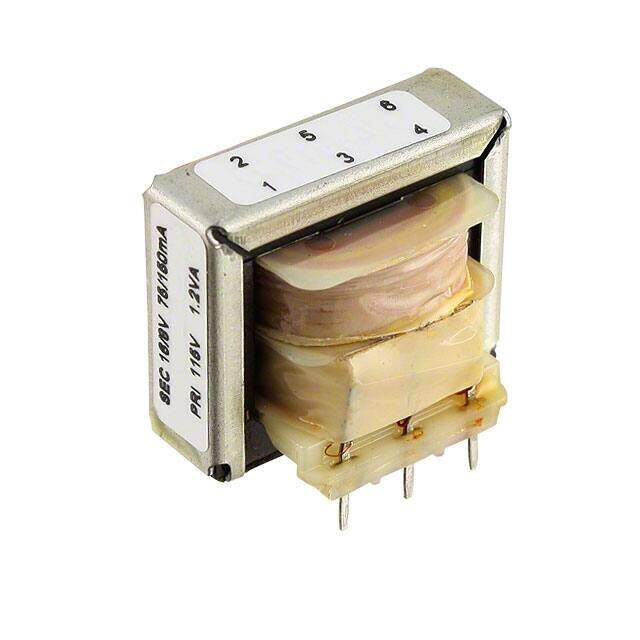

161EA16
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
XFRMR LAMINATED 1.2VA THRU HOLE
PDF
/
Buying Options
Total Price: USD $10.03
Unit Price: USD $10.032
≥1 USD $10.032
≥10 USD $7.4096
≥100 USD $6.428928
≥500 USD $6.155389
Inventory: 55
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 30.99mm
Height 30.988mm
Technical
VA Rating 1.2 VA
Secondary Winding(s) Single, Multiple Taps
Voltage - Secondary (Full Load) Parallel 8V Series 16V
Center Tap No
Primary Winding(s) Single
Voltage - Primary 115V
Power - Max 1.2VA
Output Current 150mA
Current - Output (Max) Parallel 150mA Series 75mA
Max Output Current 75mA
Output Voltage 8V
Voltage - Isolation 2000Vrms
Approval Agency UL; CSA
Termination Style PC Pin
Current Rating 150mA
Max Power Dissipation 1.2W
Power Rating 1.2W
HTS Code 8504.31.40.35
Additional Feature PCB MOUNTABLE
Min Operating Temperature 0°C
Max Operating Temperature 130°C
Type Laminated Core
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 35.05mm Lx30.23mm W
Series 161
Published 2000
Physical
Weight 0.2lb 90.72g
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
