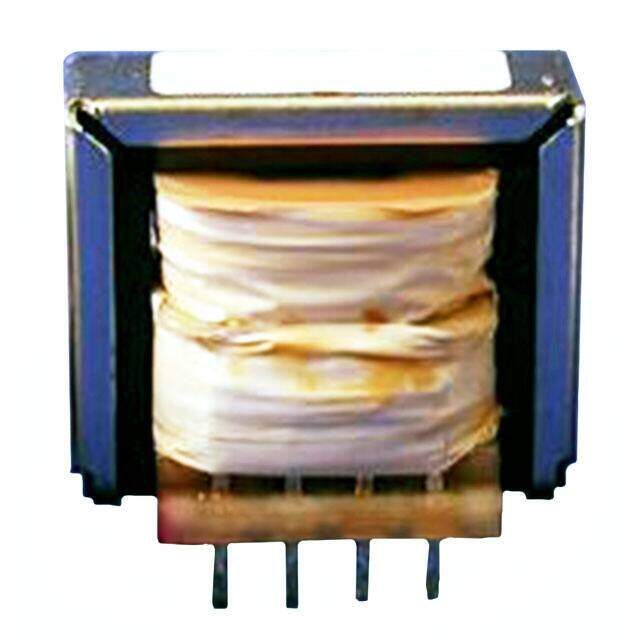

160E34
RoHS
RoHS compliant
RoHS compliantPackage /
Category Transformers / Power Transformers
Description
XFRMR LAMINATED 1.2VA THRU HOLE
PDF
/
Buying Options
Total Price: USD $11.15
Unit Price: USD $11.1496
≥1 USD $11.1496
≥10 USD $8.2324
≥100 USD $7.143312
≥500 USD $6.839316
Inventory: 113
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 30.99mm
Height 30.988mm
Technical
VA Rating 1.2 VA
Secondary Winding(s) Single, Multiple Taps
Voltage - Secondary (Full Load) Parallel 17V Series 34V
Center Tap No
Primary Winding(s) Dual
Voltage - Primary 115V 230V
Power - Max 1.2VA
Current - Output (Max) Parallel 70mA Series 35mA
Max Output Current 35mA
Voltage - Isolation 2000Vrms
Approval Agency UL; CSA
Termination Style PC Pin
Max Power Dissipation 1.2W
Power Rating 1.2W
HTS Code 8504.31.40.35
Additional Feature PCB MOUNTABLE
Min Operating Temperature 0°C
Max Operating Temperature 130°C
Type Laminated Core
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 35.05mm Lx30.23mm W
Series 160
Physical
Weight 0.19lb 86.18g
Mounting Type Through Hole
Mount Through Hole
