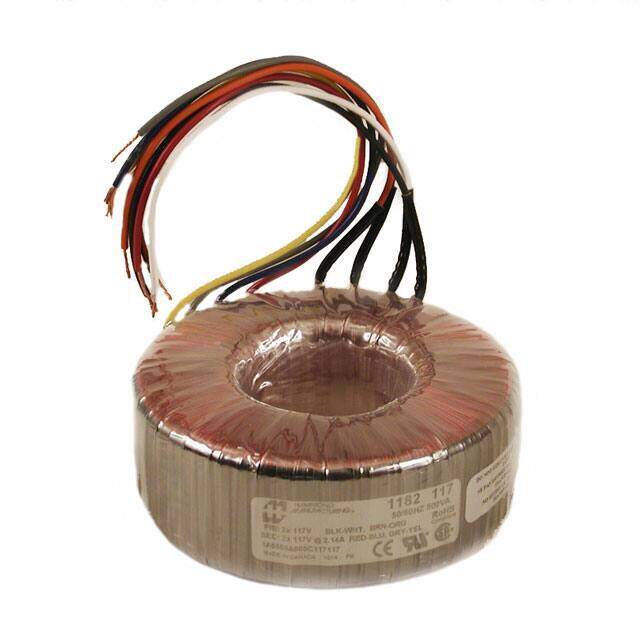

1182Q12 image
Favorite
1182Q12 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Transformers / Power Transformers
Description TRANSFORMER TOROIDAL POWER
PDF
/
Buying Options
Total Price: USD $69.42
Unit Price: USD $69.4232
≥1 USD $69.4232
≥10 USD $67.10616
≥100 USD $62.477888
≥500 USD $57.849792
Inventory: 102
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Mounting Type Chassis Mount
Weight 3lbs 1.4kg

Technical

Published 2014
Series 1182
Size / Dimension 110.49mm Dia
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Wire Leads
Type Toroidal
Power Rating 160W
Frequency 60Hz
Termination Style Wire Leads
Voltage - Isolation 4000Vrms
Current - Output (Max) Parallel 13.34A Series 6.67A
Power - Max 160VA
Outside Diameter 107.95 mm
Voltage - Primary 117V
Primary Winding(s) Dual
Center Tap No
Voltage - Secondary (Full Load) Parallel 12V Series 24V
Secondary Current 6.67A

Dimensions

Height 44.45mm

Compliance

RoHS Status ROHS3 Compliant
